Solenoid Valve Block, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Bleed the air suspension system. Refer to AIR SUSPENSION SYSTEM, FILLING AND BLEEDING .
-- Switch off the ignition.
-- Remove the left rear wheel. Refer to WHEELS AND TIRES .
-- Remove the bolts and nuts -arrows-.
-- Loosen the wheel housing liner -1- in the rear area and push forward.

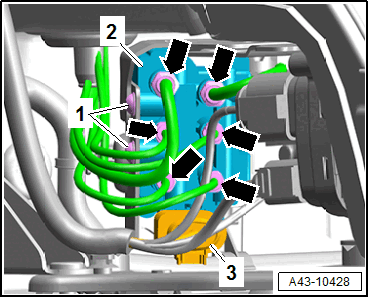

-- Disconnect the connector -3-.
-- Remove the air lines -arrows- and protect them from dirt.
-- Remove the bolts -1- and remove the solenoid valve block -2- from the bracket.
