Air Supply Unit With Bracket, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
- If the air line is removed from a component, check if the cutting ring is seated on the air line.
-- Bleed the air suspension system. Refer to AIR SUSPENSION SYSTEM, FILLING AND BLEEDING .
-- Switch off the ignition.
-- Remove the muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .
-- Remove the left rear wheel. Refer to WHEELS AND TIRES .

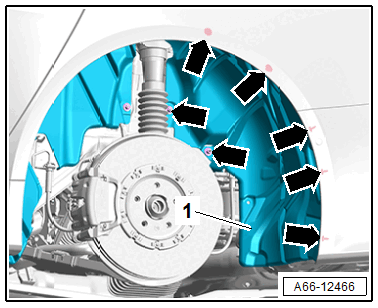

-- Remove the bolts and nuts -arrows-.
-- Loosen the wheel housing liner -1- in the rear area and push forward.

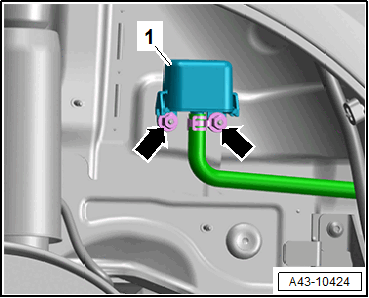

-- Remove the nuts -arrows- and free up the muffler -1-.

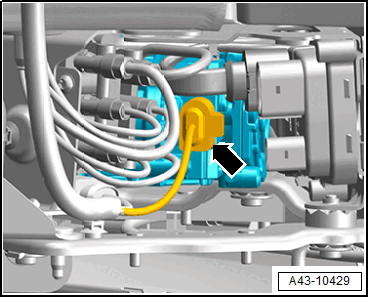

-- Disconnect the connector -arrow-.

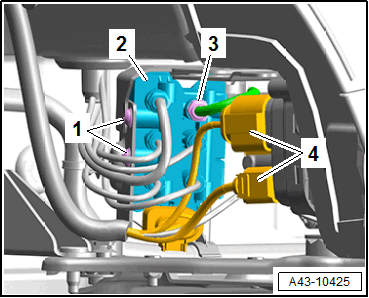

-- Disconnect the connectors -4-.
-- Disconnect the air line -3- and protect it from contamination.
-- Remove the bolts -1- and tie the solenoid valve block -2- toward the front.

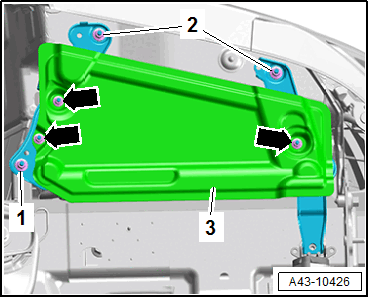

-- Remove the nuts -1 and 2- and remove the air supply unit with the bracket.
