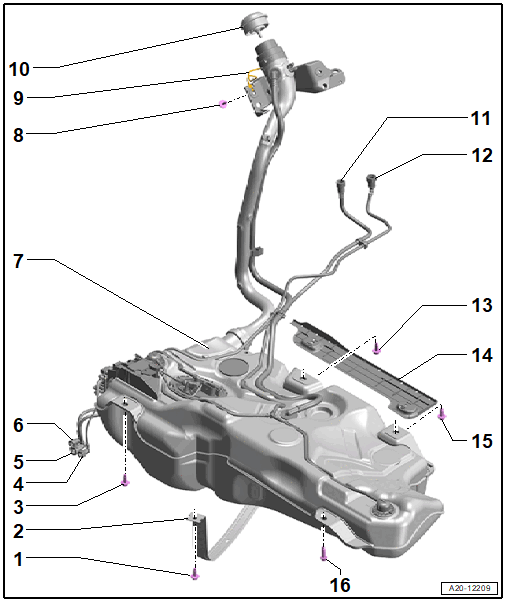

Overview - Fuel Tank, TFSI Vehicles With Torsion Beam Axle
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Always replace after removing
- Tightening specification. Refer to OVERVIEW - MUFFLER .
- Mounting Strap
- Bolt
- Always replace after removing
- 20 Nm +90°
- Fuel Line
- For versions with parking/auxiliary heater
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Supply Line
- To the engine
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To the Activated Charcoal Filter Air Flushing Pressure Sensor -GX44-
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Tank
- Allocation. Refer to the => Electronic Parts Information (ETKA).
- Removing and installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES WITH FWD, WITHOUT HIGH-VOLTAGE SYSTEM .
- Bolt
- Quantity: 2
- Always replace after removing
- 8 Nm +90°
- Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge. Refer to OVERVIEW - FUEL TANK, TFSI VEHICLES WITH FWD AND MULTI-LINK SUSPENSION .
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastener
- Bleeder Line
- To the EVAP Canister
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To the EVAP Canister
- Different routing
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bolt
- Always replace after removing
- 20 Nm +90°
- Underbody Trim Panel
- Clipped to the fuel tank
- Bolt
- Always replace after removing
- 20 Nm +90°
- Bolt
- Always replace after removing
- 20 Nm +90°

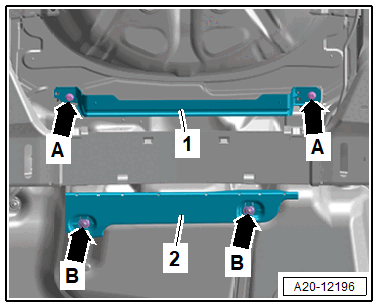

Underbody Trim Panel Bracket - Tightening Specification
-- Tighten the bolts -A arrows- to 20 Nm.
