Overview - Fuel Tank, TFSI Vehicles With Fwd And Multi-Link Suspension

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

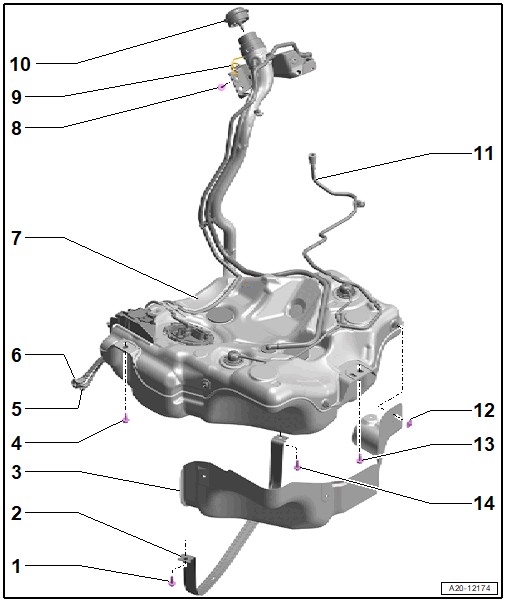

Fig 1: Exploded View Of Fuel Tank, TFSI Vehicles With FWD And Multi-Link Suspension

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Always replace after removing
- Tightening specification. Refer to OVERVIEW - MUFFLER .
Mounting Strap
Heat Shield
- For the fuel tank
Bolt
- Always replace after removing
- 20 Nm +90°
Fuel Supply Line
- To the engine
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Bleeder Line
- To the Activated Charcoal Filter Air Flushing Pressure Sensor -GX44- / EVAP Canister
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Fuel Tank
- Allocation. Refer to the => Electronic Parts Information (ETKA).
- Removing and installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES WITH FWD, WITHOUT HIGH-VOLTAGE SYSTEM .
Bolt
- Quantity: 2
- Always replace after removing
- 8 Nm +90°
Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge. Refer to OVERVIEW - FUEL TANK, TFSI VEHICLES WITH FWD AND MULTI-LINK SUSPENSION .
Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastener
Bleeder Line
- To the EVAP Canister
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Nut
- For the heat shield
- Quantity: 4
- 2 Nm
Bolt
- Always replace after removing
- 20 Nm +90°
Bolt
- Always replace after removing
- 20 Nm +90°

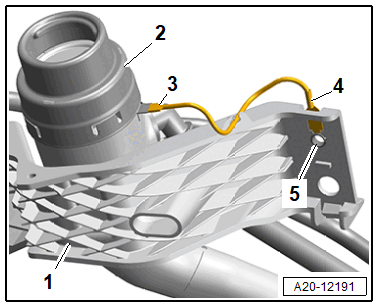

Ground Connection Routing

Courtesy of AUDI OF AMERICA, LLC

-- Route the ground connections as shown.

-- Make sure the following connectors are secure:

The connector -3- must be firmly secured on the fuel filler neck metal ring -2-.
The ground connection contact -4- must be engaged in the hole on the fuel tank -1- and secured with a spacer -5-.
