Overview - Fuel Tank, TFSI AWD Vehicles
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

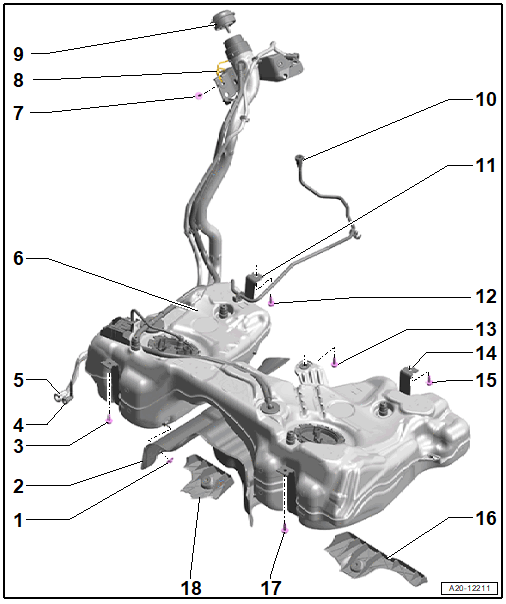

- Nut
- For the heat shield
- Quantity: 4
- 2 Nm
- Heat Shield
- For the fuel tank
- Bolt
- Always replace after removing
- 20 Nm +90°
- Fuel Line
- To the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Tank
- Allocation. Refer to the => Electronic Parts Information (ETKA).
- Removing and installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES WITH FWD, WITHOUT HIGH-VOLTAGE SYSTEM .
- Bolt
- Quantity: 2
- Always replace after removing
- 8 Nm +90°
- Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge. Refer to OVERVIEW - FUEL TANK, TFSI VEHICLES WITH FWD AND MULTI-LINK SUSPENSION .
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastener
- Bleeder Line
- To the EVAP Canister
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Right Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- Always replace after removing
- 20 Nm +90°
- Bolt
- Always replace after removing
- 20 Nm +90°
- Left Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- Always replace after removing
- 20 Nm +90°
- Left Underbody Trim Panel
- Nut: 2 Nm
- Bolt
- Always replace after removing
- 20 Nm +90°
- Right Underbody Trim Panel
- Nut: 2 Nm
