Overview - Fuel Tank, TDI Vehicles With Torsion Beam Axle

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

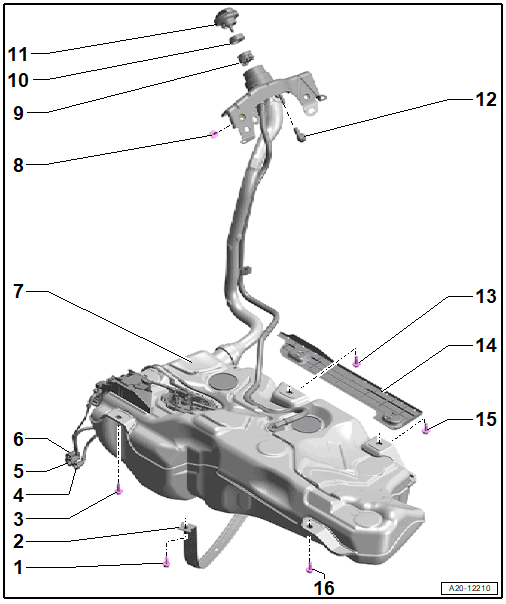

Fig 1: Exploded View Of Fuel Tank, TDI Vehicles With Torsion Beam Axle

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Always replace after removing
- Tightening specification. Refer to OVERVIEW - MUFFLER .
Mounting Strap
Bolt
- Always replace after removing
- 20 Nm +90°
Fuel Return Line
- From the engine
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Fuel Supply Line
- To the fuel filter
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Fuel Line
- For versions with parking/auxiliary heater
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Fuel Tank
- Removing and Installing. Refer to FUEL TANK, REMOVING, TDI VEHICLES WITH FWD, WITHOUT HIGH-VOLTAGE SYSTEM .
- Fuel filler neck ground connection for discharging electrostatic charge. Refer to OVERVIEW - FUEL TANK, TDI VEHICLES WITH FWD AND MULTI-LINK SUSPENSION .
Bolt
- Quantity: 2
- Always replace after removing
- 8 Nm +90°
Misfueling Guard
- Removing and installing. Refer to MISFUELING GUARD, REMOVING AND INSTALLING .
Locking Ring
- For misfueling guard
Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with a fastener
End Piece
- Push all the way on the connecting piece on the fuel filler neck
Bolt
- Always replace after removing
- 20 Nm +90°
Underbody Trim Panel
- Clipped to the fuel tank
Bolt
- Always replace after removing
- 20 Nm +90°
Bolt
- Always replace after removing
- 20 Nm +90°
