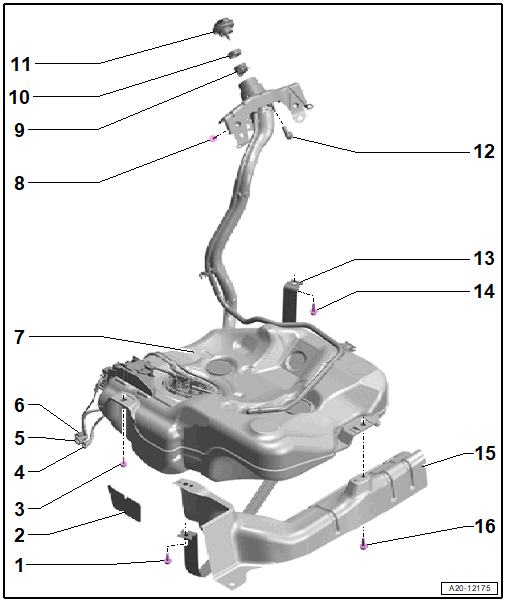

Overview - Fuel Tank, TDI Vehicles With Fwd And Multi-Link Suspension
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Always replace after removing
- Tightening specification. Refer to OVERVIEW - MUFFLER .
- Heat Shield
- Bolt
- Always replace after removing
- 20 Nm +90°
- Fuel Return Line
- From the engine
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Supply Line
- To the fuel filter
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Line
- For versions with parking/auxiliary heater
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Tank
- Allocation. Refer to the => Electronic Parts Information (ETKA).
- Removing and installing. Refer to FUEL TANK, REMOVING, TDI VEHICLES WITH FWD, WITHOUT HIGH-VOLTAGE SYSTEM .
- Fuel filler neck ground connection for discharging electrostatic charge. Refer to OVERVIEW - FUEL TANK, TDI VEHICLES WITH FWD AND MULTI-LINK SUSPENSION .
- Bolt
- Quantity: 2
- Always replace after removing
- 8 Nm +90°
- Misfueling Guard
- Removing and installing. Refer to MISFUELING GUARD, REMOVING AND INSTALLING .
- Locking Ring
- For misfueling guard
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with a fastener
- End Piece
- Push all the way on the connecting piece on the fuel filler neck
- Mounting Strap
- Bolt
- Always replace after removing
- 20 Nm +90°
- Heat Shield
- For the fuel tank
- Bolt
- Always replace after removing
- 20 Nm +90°

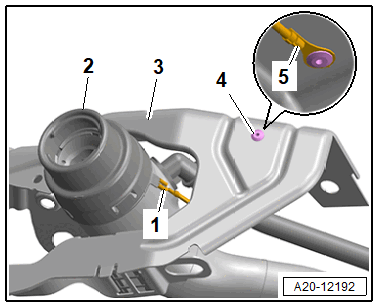

Ground Connection Routing
-- Route the ground connections as shown.
-- Make sure the following connectors are secure:
- The connector -1- must be firmly secured on the fuel filler neck metal ring -2-.
- The contact -5- from the ground connection must be riveted securely to the retaining plate -3- from the fuel filler neck using the rivet -4-.
