Overview - Fuel Tank, TDI AWD Vehicles

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

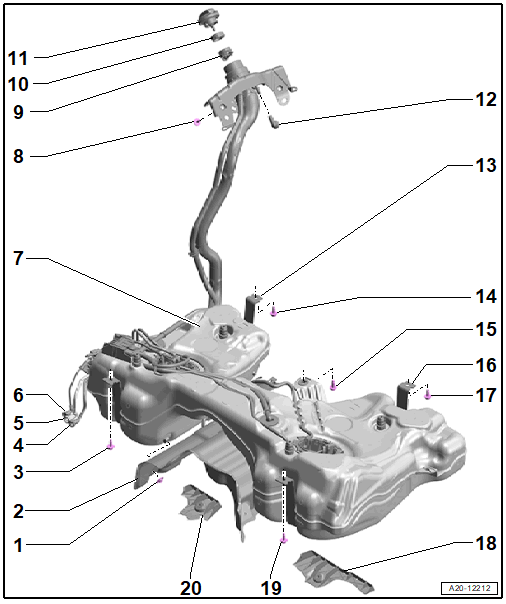

Fig 1: Exploded View Of Fuel Tank, TDI AWD Vehicles

Courtesy of AUDI OF AMERICA, LLC

Nut
- For the heat shield
- Quantity: 4
- 2 Nm
Heat Shield
- For the fuel tank
Bolt
- Always replace after removing
- 20 Nm +90°
Fuel Return Line
- From the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Fuel Supply Line
- To the fuel filter
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Fuel Line
- For versions with parking/auxiliary heater
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Fuel Tank
- Allocation. Refer to the => Electronic Parts Information (ETKA).
- Removing and installing. Refer to FUEL TANK, REMOVING, TDI VEHICLES WITH FWD, WITHOUT HIGH-VOLTAGE SYSTEM .
- Fuel filler neck ground connection for discharging electrostatic charge. Refer to OVERVIEW - FUEL TANK, TDI VEHICLES WITH FWD AND MULTI-LINK SUSPENSION .
Bolt
- Quantity: 2
- Always replace after removing
- 8 Nm +90°
Misfueling Guard
- Removing and installing. Refer to MISFUELING GUARD, REMOVING AND INSTALLING .
Locking Ring
- For misfueling guard
Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with a fastener
End Piece
- Push all the way on the connecting piece on the fuel filler neck
Right Mounting Strap
- Secured to the fuel tank with expanding clips.
Bolt
- Always replace after removing
- 20 Nm +90°
Bolt
- Always replace after removing
- 20 Nm +90°
Left Mounting Strap
- Secured to the fuel tank with expanding clips.
Bolt
- Always replace after removing
- 20 Nm +90°
Left Underbody Trim Panel
- Nut: 2 Nm
Bolt
- Always replace after removing
- 20 Nm +90°
Right Underbody Trim Panel
- Nut: 2 Nm
