Door C-Pillar Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the door window into the "open" position.
-- Remove the window frame cover. Refer to OVERVIEW - REAR DOOR TRIM PANEL .
-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

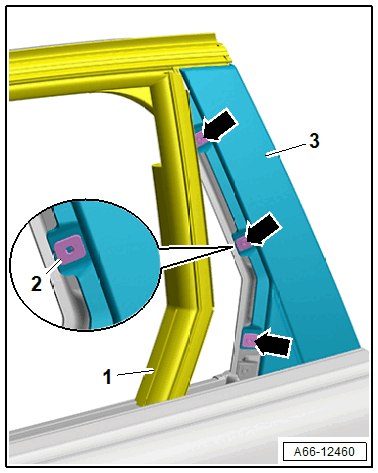

-- Remove the window guide -1- out of the C-pillar trim -3-.
-- Remove the bolts -arrows- and the clip nut -2-.

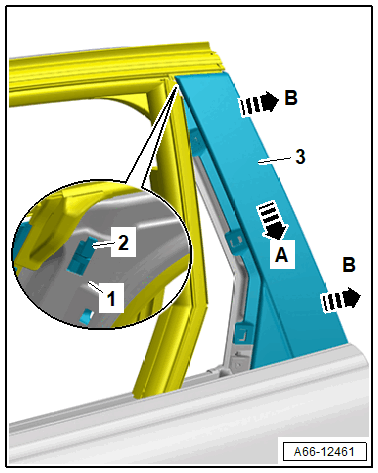

-- Push the C-pillar trim -3- downward -arrow A-. While doing this, the tab -2- will disengage from the opening -1-.
-- Push the C-pillar trim to the outside -B arrows- until it disengages.
-- Remove the C-pillar trim.
