Overview - Rear Door Trim Panel

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

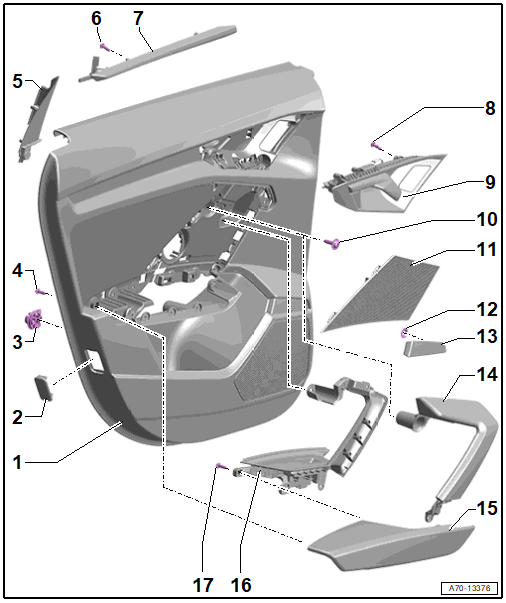

Fig 1: Exploded View Of Rear Door Trim Panel
GWWA70-13376Courtesy of AUDI OF AMERICA, LLC
  1. Door Trim Panel
  2. Rear Reflector
    • Clip into the trim panel
  3. Clip
    • Quantity: 7
    • Insert in the trim panel
  4. Bolt for Pull Handle/Armrest
    • Quantity: 14
    • 1.7 Nm
  5. Window Frame Trim Panel
  6. Bolt
    • Quantity: 3
    • 1.7 Nm
  7. Trim Molding
  8. Bolt
    • Quantity: 7
    • 1.7 Nm
  9. Interior Door Mechanism
  10. Bolt for Door Trim Panel
    • Quantity: 3
    • 2.5 Nm
  11. Treble Speaker Trim
  12. Lock Washer
    • Quantity: 3
  13. Decorative Trim
  14. Pull Handle Trim
  15. Armrest
  16. Pull Handle / Switch Mount
  17. Switch Mount Screw
    • Quantity: 2
    • 1.7 Nm
