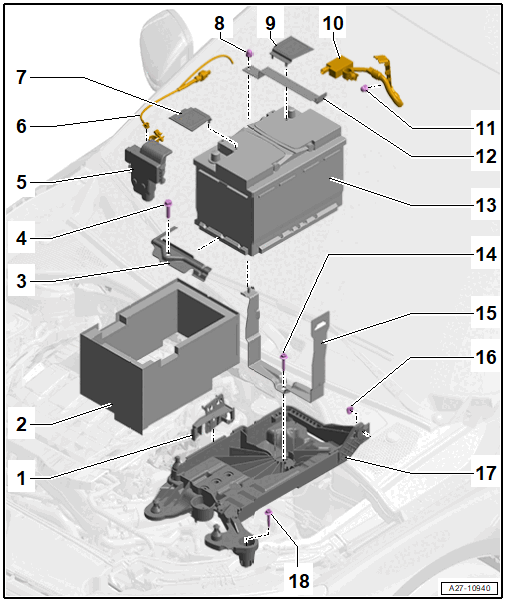

OVERVIEW - Battery -A-, IN ENGINE COMPARTMENT (0K0, 0K4)
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For the NOx Sensor Control Module -J583-
- Heat Shield Boot
- Bracket
- Bolt
- 20 Nm
- Fuse Panel 4 -ST4-
- with positive cable and positive terminal
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, IN ENGINE/MOTOR COMPARTMENT (0K0) .
- Tightening specification: 5 Nm
- Wire
- Tightening specification: 5 Nm.
- Positive Terminal Cover
- Nut
- 8 Nm
- Negative Terminal Cover
- Ground Wire
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, IN ENGINE/MOTOR COMPARTMENT (0K0) .
- Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, IN ENGINE/MOTOR COMPARTMENT (0K0 AND 0K4) .
- Tightening specification: 5 Nm
- Cap Nut
- 20 Nm
- Retaining Bracket
- Battery
- Checking. Refer to Battery, Checking .
- Removing and Installing. Refer to Battery -A-, REMOVING AND INSTALLING, IN ENGINE/MOTOR COMPARTMENT (0K0) .
- Bolt
- 8 Nm
- Retaining Bracket
- Nut
- 8 Nm
- Battery Tray
- Removing and Installing. Refer to BATTERY TRAY, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 8 Nm
