Parking Aid Control Module -J446- REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

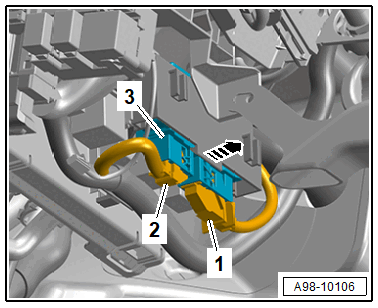

-- If equipped, release the retainer -2- -arrow- and remove the cover -1- downward.
-- Disconnect the connectors -1 and 2-.
-- Release the tab -arrow- and remove the control module -3- downward from the bracket.
