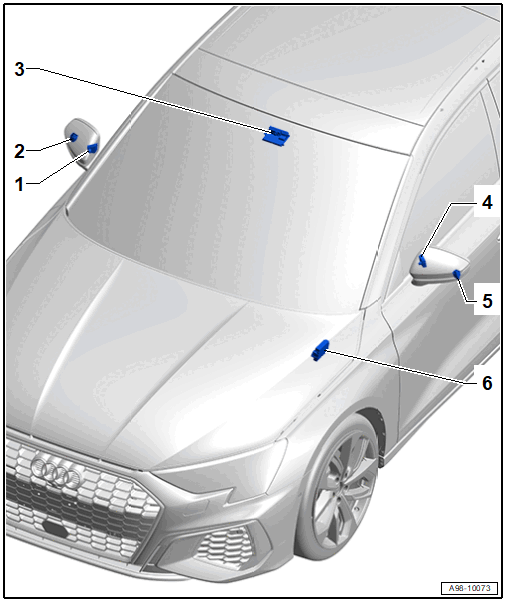

Component Location Overview - Sensors And Control Modules In Center Section Of Vehicle
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Lane Change Assistance Warning Lamp in Right Rearview Mirror -K311-
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and Installing. Refer to Lane Change Assistance Warning Lamp in Right Rearview Mirror -K311- / Lane Change Assistance Warning Lamp in Left Rearview Mirror -K312-, REMOVING AND INSTALLING .
- Right Peripheral Camera -R245-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and Installing. Refer to Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Driver Assistance Systems Front Camera -R242-
- Driver Assistance Systems Front Camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA .
- Removing and Installing. Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING .
- Calibrating. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Lane Change Assistance Warning Lamp in Left Rearview Mirror -K312-
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and Installing. Refer to Lane Change Assistance Warning Lamp in Right Rearview Mirror -K311- / Lane Change Assistance Warning Lamp in Left Rearview Mirror -K312-, REMOVING AND INSTALLING .
- Left Peripheral Camera -R244-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and Installing. Refer to Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Parking Aid Control Module -J446-
- Behind the driver side instrument panel cover
- The warning tone is played by the infotainment system Rear Parking Aid Speaker - R194- and Right Center Treble Speaker -R196-
- Parking Aid. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
