Left Rear Parallel Parking Assistance Sensor -G716- /Right Rear Parallel Parking Assistance Sensor -G717-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN REAR SECTION OF VEHICLE .
-- Detach the rear wheel housing liner at area of the bumper and push it aside. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

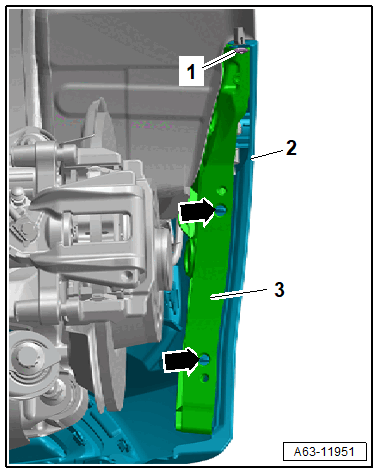

-- Remove the bolt -1-.
-- Release the retaining strip -3- at the retainers -arrows-.
-- Release the bumper cover side piece -2- and pull outward as far as possible.
-- Release the retainers -arrows-.
-- Remove the sensor -1- from the mount.
-- Disconnect the connector -2- by sliding the retainer -3- toward the rear and pressing the release down.
