Lane Change Assistance Warning Lamp in Right Rearview Mirror -K311- / Lane Change Assistance Warning Lamp in Left Rearview Mirror -K312-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the mirror cap. Refer to MIRROR CAP, REMOVING AND INSTALLING .

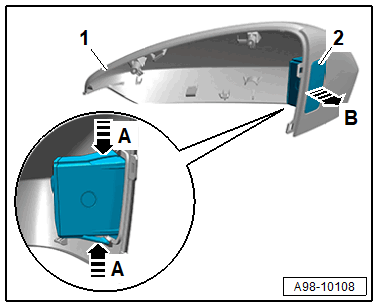

-- Release the catch -A arrows- and remove the warning lamp -2- from the mirror cap -1- -arrow B-.
-- Disconnect the connector.
