Instrument Panel Air Duct, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument cluster. Refer to OVERVIEW - INSTRUMENT CLUSTER .

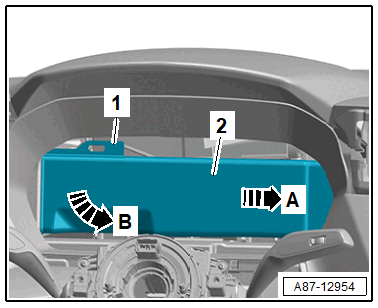

-- Slide the air duct -2- toward the inside in direction of -arrow A- at the tab -1-.
-- Pivot the air duct -2- to the side in direction of -arrow B- and remove it.
