Overview - Instrument Cluster

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

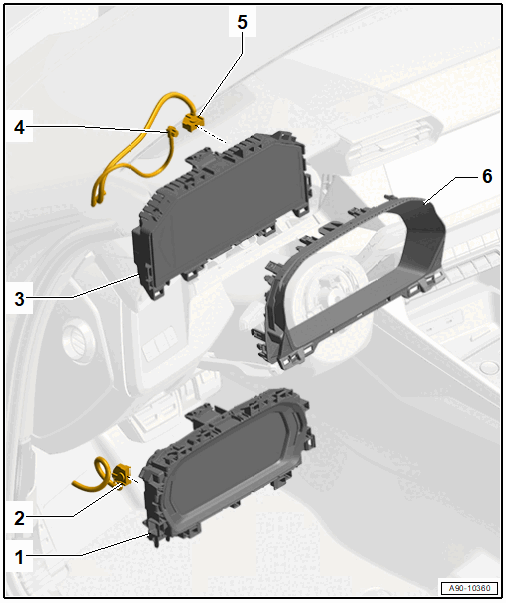

Fig 1: Exploded View Of Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

Instrument Cluster -KX2- (7J2, 9S1)
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- If faulty replace the instrument cluster
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Connector
- For the instrument cluster
Instrument Cluster -KX2- (9S9)
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- If faulty replace the instrument cluster
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Antenna Wire
Connector
- For the instrument cluster
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
