Testing Values and Process Specifications Table:
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
| Service: | Fluid Level Specified Value: |
|---|---|
| Delivery service | Fluid level at the MAX mark -1-. |
| Changing the brake fluid | Fluid level between the MAX and MIN mark -1- and -2-, consistent with the wear condition of the brake pads. |
The leak test for the brake system is a repair procedure and should be charged separately.
Procedure:

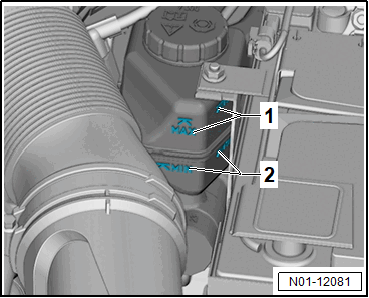

-- Estimate the brake fluid level using the markings -1- and -2- on the brake fluid reservoir.
-- Perform the following actions depending on the test result:
| Fluid level: | Evaluation / Action: |
|---|---|
| Over the MAX mark -1- | Extract the brake fluid. |
| Under the specified level | Perform a leak test for the brake system. Refer to LEAK TEST . |
NOTE:
Due to wear and the automatic adjustment of the brake pads while driving, the brake fluid level lowers.
