Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- De-energize the 48V system and disconnect the Battery -A-. Refer to Battery -A-, DISCONNECT AND CONNECT, 0K4 .

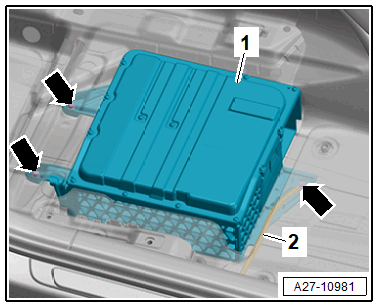

-- Release the retainers -arrows-.
-- Remove the cover -1-.
-- Visually inspect and classify the Battery, 48 V -A6-. Refer to Battery, 48 V -A6-, VISUALLY INSPECTING AND CLASSIFYING .

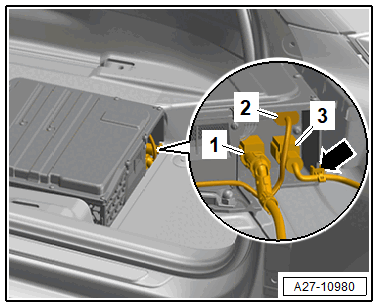

-- Free up the wiring harness -arrow-.
-- Disconnect the connector -2-.
-- Disconnect the battery terminal connectors -1 and 3-.
-- Remove the bolts -arrows-.
-- Free up the ground cable -2-.
-- Lift the battery -1- out of the vehicle interior.
