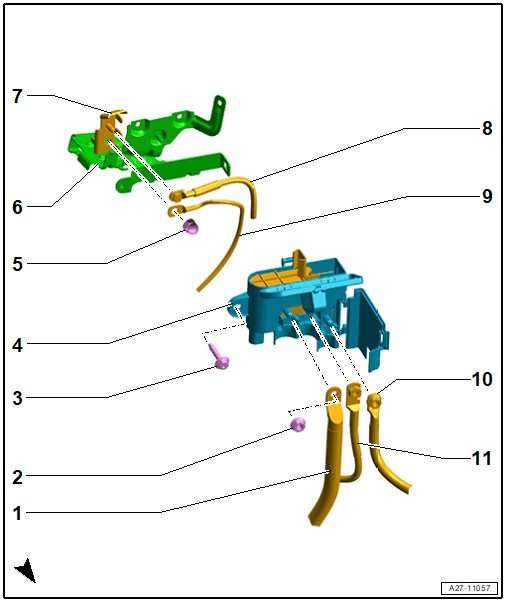

Overview - Battery Jump Start Terminal
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Positive Cable
- From the battery
- Nut
- 12 Nm
- Bolt
- 6 Nm
- Battery Jump Start Terminal -U6-
- Only versions with battery in luggage compartment
- With positive terminal grip
- Removing and Installing. Refer to BATTERY JUMP START TERMINAL, REMOVING AND INSTALLING .
- Nut
- 20 Nm
- Mount
- For the Battery Jump Start Terminal -U6-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOX .
- Negative Terminal
- Ground Wire
- Electro-mechanical power steering
- 8 Nm
- Ground Wire
- Wire
- To the generator
- 12 Nm
- Wire
- Allocation. Refer to Wiring Diagram.
- 12 Nm
