Seat Pan Cover And Padding, Removing And Installing, Sport Seat: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the Engine/Transmission Holder - Seat Repair Fixture:VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the seat frame trim panel on the tunnel-side. Refer to SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, TUNNEL-SIDE .

-- Remove the seat frame trim panel on the side sill side. Refer to SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING, SIDE SILL SIDE .

-- Equipped on some models: remove the bolts -arrows- and remove the child seat anchor -1- from the front seat.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the wiring harness connectors for the backrest and free up the disconnected wiring harnesses. Refer to WIRE ROUTING, DISCONNECTING AND CONNECTING .

-- North America versions with passenger occupant detection system: note the information. Refer to SEAT OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING .

-- Move seat depth adjuster forward.

-- Equipped on some models: remove the fire extinguisher from the mount.

A3:

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, disconnect the connector -2- and free it up.

-- Remove the nuts -1-.

-- Unclip the seat depth adjuster at the tabs -arrows- and remove it upward from the seat pan.

-- Pivot the seat depth adjuster upward and disengage it at the tabs -3- from the seat pan.

Courtesy of AUDI OF AMERICA, LLC

-- Equipped on some models: disconnect the connector -1-.

-- Release the hooks -arrows- with a flat-head screwdriver and fold the cushion with cover toward the rear.

-- Disengage the contour wire on the left and right side from the hooks -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Using the Hook Tool:T40207 , disengage the cover clamping strip from the hooks -B arrows-.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

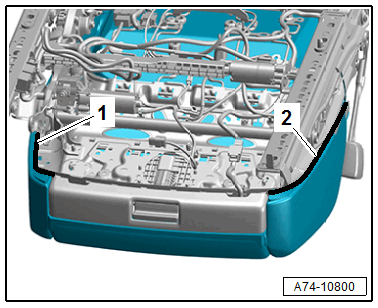

-- Disengage the molding -1 and 2- on the cover at the side using the Backrest Panel Tool:3370 .

-- Disengage the rubber tabs -arrows-.

Courtesy of AUDI OF AMERICA, LLC

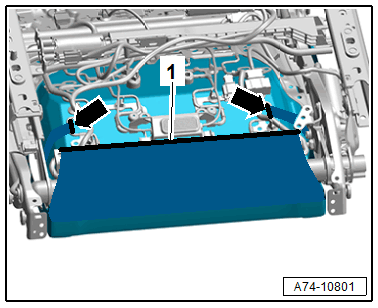

-- Disengage the cover molding -1- using the Backrest Panel Tool:3370 .

-- Equipped on some models: free up the seat heating wiring harness at the seat pan. Disconnect the modular wiring routing to do so. Refer to WIRE ROUTING, DISCONNECTING AND CONNECTING .

-- Remove the cover and cushion -1- from the seat pan. Depending on the equipment version, guide the seat heating wiring harness out.
