Overview - Seat Heating Element
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

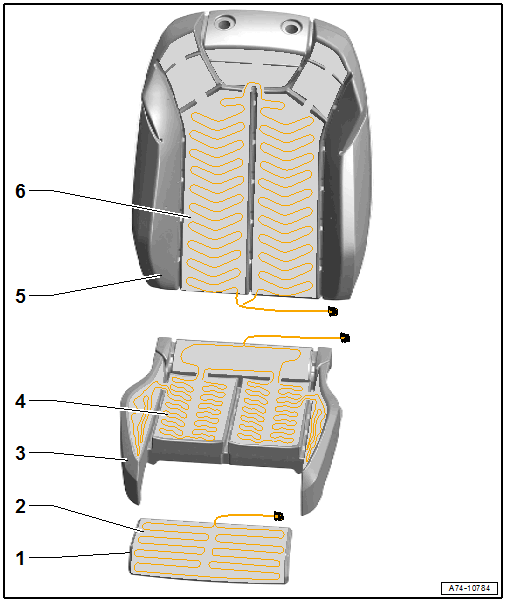

The Q3 Sport seat is shown.
- Seat Depth Adjuster Cushion
- Sport seat only
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER CUSHION, REMOVING AND INSTALLING .
- When replacing, apply a new heating element. Refer to SEAT DEPTH ADJUSTER HEATING ELEMENT, REMOVING AND INSTALLING .
- Seat Extension Heating Element
- Q3 Sport seat only
- Heated Driver Seat Extension -Z37-, Heated Front Passenger Seat Extension -Z38-
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER HEATING ELEMENT, REMOVING AND INSTALLING .
- Q3 Sport seat only
- Seat Cushion
- Equipment version with Driver Seat Bolster Heater -Z31-, Front Passenger Seat Bolster Heater -Z33-
- When replacing, apply a new heating element. Refer to Driver Seat Heating Element -Z6- /Front Passenger Seat Heating Element -Z8-, REMOVING AND INSTALLING .
- Seat Heating Element
- A3: Left Front Seat Heater -ZX11-, Right Front Seat Heater -ZX13-
- Q3: Driver Side Heated Seat -ZX15-, Front Passenger Side Heated Seat -ZX16-
- Each consists of
- Driver Seat Heating Element -Z6-, Front Passenger Seat Heating Element -Z8-
- Left Front Seat Temperature Sensor -G344-, Right Front Seat Temperature Sensor -G345-
- Removing and Installing. Refer to Driver Seat Heating Element -Z6- /Front Passenger Seat Heating Element -Z8-, REMOVING AND INSTALLING .
- Backrest Cushion
- When replacing, apply a new heating element. Refer to Driver Backrest Heating Element -Z7- /Front Passenger Backrest Heating Element -Z9-, REMOVING AND INSTALLING .
- Backrest Heating Element
- Driver Backrest Heating Element -Z7-, Front Passenger Backrest Heating Element -Z9-
- Removing and Installing. Refer to Driver Backrest Heating Element -Z7- /Front Passenger Backrest Heating Element -Z9-, REMOVING AND INSTALLING .
