Driver Backrest Heating Element -Z7- /Front Passenger Backrest Heating Element -Z9-, REMOVING AND INSTALLING
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
The old seat heating element remains on the cushion and will be covered by the new heating element.
Procedure
- Cover and cushion separated. Refer to BACKREST COVER AND CUSHION, SEPARATING .
-- Cut the wire directly on the old heating element.

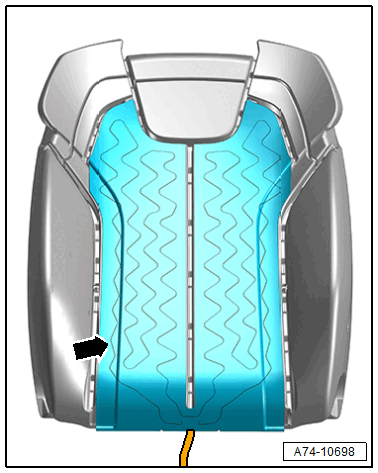

-- Align the new heating element -arrow- on the cushion (example image).
-- Peel the protective film off the heating element one after the other. Be careful not to damage the heating element.
-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
Further installation is performed in reverse order of the removal.
