Overview - Backrest Cover And Cushion, Q3

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

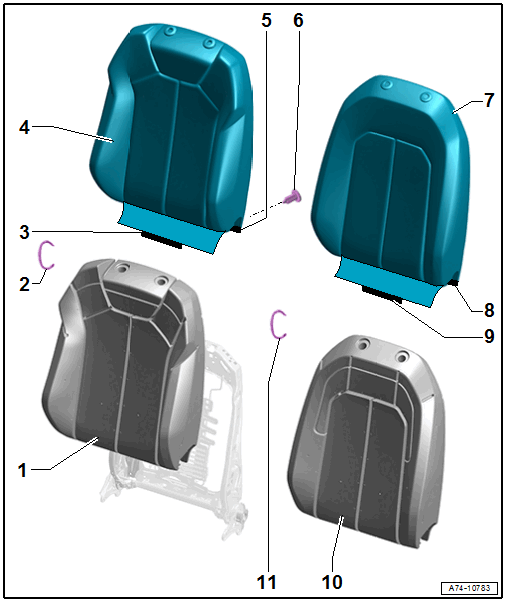

Fig 1: Exploded View Of Backrest Cover And Cushion

Courtesy of AUDI OF AMERICA, LLC

Cushion
- Sport Seat
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to Driver Backrest Heating Element -Z7- /Front Passenger Backrest Heating Element -Z9-, REMOVING AND INSTALLING .
Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
Molding
- Sewn into cover
- To engage the cover
- Check for proper seating
Cover
- Sport Seat
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
Clamping Strip
- Flat/U-profile sewn into cover
- For closing the cover
- Check for proper seating
Clip
- Sport seat only
- Quantity: 2
Cover
- Standard Seat
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
Clamping Strip
- Flat/U-profile sewn into cover
- For closing the cover
- Check for proper seating
Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
Cushion
- Standard Seat
- Covers and Cushions, Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to Driver Backrest Heating Element -Z7- /Front Passenger Backrest Heating Element -Z9-, REMOVING AND INSTALLING .
Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
