Component Location Overview - Electric And Electronic Components

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

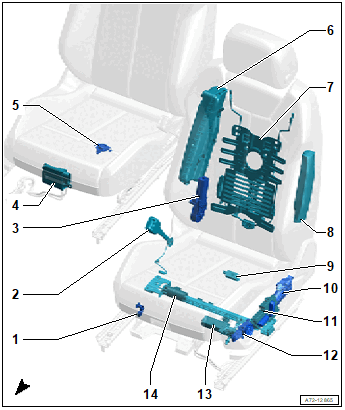

GWWA72-12865Courtesy of AUDI OF AMERICA, LLC
  1. Seat Position Sensor
    • Driver Seat Position Sensor -G553-, Front Passenger Seat Position Sensor -G554-
  2. Seat Belt Switch
    • Driver Seat Belt Switch - E24-, Front Passenger Seat Belt Switch - E25-
  3. Backrest Adjustment Motor
    • Driver Backrest Adjustment Motor -V45-, Front Passenger Backrest Adjustment Motor -V46-
  4. Seat Occupant Detection System Control Module -J706-
  5. Front Passenger Occupant Detection Sensor -G128-
  6. Driver Side Front Center Airbag Igniter for Occupant Contact Protection -N737-
    • Only A3
    • Only for the driver seat
    • Overview. Refer to Thorax Airbags .
  7. Driver Seat Lumbar Support -VX2- /Front Passenger Seat Lumbar Support -VX3-
    • Equipped on some models
      • Driver Seat Lumbar Support Curvature Adjustment Motor -V125-, Driver Seat Lumbar Support Height Adjustment Motor -V129-
      • Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-, Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
    • Overview. Refer to OVERVIEW - FRONT BACKREST .
  8. Thorax Airbag
  9. Footwell Lamp
  10. Seat Height Adjustment Motor
    • Driver Seat Height Adjustment Motor -V245-, Front Passenger Seat Height Adjustment Motor -V246-
  11. Seat Adjustment Control Head
    • Driver Seat Adjustment Control Head -E470-, Front Passenger Seat Adjustment Control Head -E471-
  12. Lumbar Support Adjustment Switch
    • A3
      • Driver Seat Switch Module -E663-, Front Passenger Seat Switch Module -E664-
    • Q3
      • Driver Seat Lumbar Support Adjustment Switch - E176-, Front Passenger Seat Lumbar Support Adjustment Switch -E177-
    • Overview. Refer to OVERVIEW - SEAT PAN .
  13. Seat Angle Adjustment Motor
    • Driver Seat Angle Adjustment Motor -V243-, Front Passenger Seat Angle Adjustment Motor -V244-
  14. Seat Forward/Back Adjustment Motor
    • Driver Seat Forward/Back Adjustment Motor -V28-, Front Passenger Seat Forward/Back Adjustment Motor -V31-

Memory Seat/Steering Column Adjustment Control ModuleJ136

Fig 1: Memory Seat/Steering Column Adjustment Control Module -J136-
GWWA72-12229Courtesy of AUDI OF AMERICA, LLC

Driver Multi-Contour Seat CompressorV439 / Front Passenger Multi-Contour Seat CompressorV440

Fig 2: Driver Multi-Contour Seat Compressor -V439- /Front Passenger Multi-Contour Seat Compressor -V440-
GWWA72-11982Courtesy of AUDI OF AMERICA, LLC

Front Passenger Multi-Contour Seat Control ModuleJ872 / Driver Multi-Contour Seat Control ModuleJ873

Fig 3: Front Passenger Multi-Contour Seat Control Module -J872- /Driver Multi-Contour Seat Control Module -J873-
GWWA72-12587Courtesy of AUDI OF AMERICA, LLC
