Overview - Instrument panel cover and attachments

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

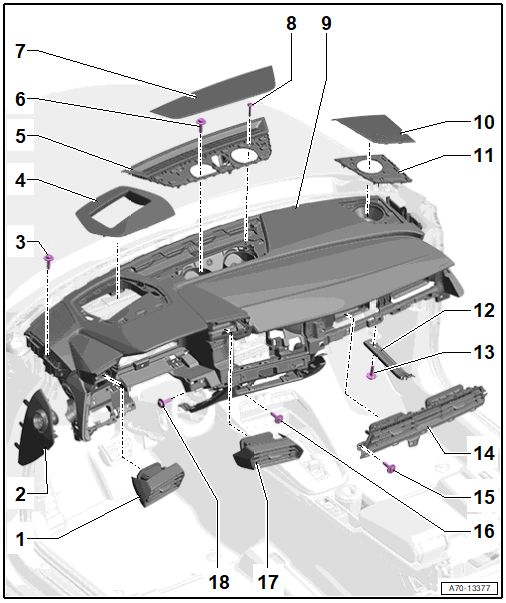

Fig 1: Exploded View Of Instrument Panel Cover And Attachments

Courtesy of AUDI OF AMERICA, LLC

Outer Instrument Panel Vent
- Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, DRIVER SIDE
Side Cover
- Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 3 Nm
Windshield Projection Cover
- Equipped on some models
- Refer to WINDSHIELD PROJECTION (HEAD-UP DISPLAY) COVER, REMOVING AND INSTALLING
Front Center Defroster Vent
- Refer to FRONT CENTER DEFROSTER VENT, REMOVING AND INSTALLING
Bolt
- 3 Nm
Center Speaker Trim
- Refer to SPEAKER TRIM, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 2 Nm
Instrument Panel
- Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING
Outer Speaker Trim
- Refer to SPEAKER TRIM, REMOVING AND INSTALLING
Speaker Mount
- Refer to SPEAKER MOUNT, REMOVING AND INSTALLING
Support for Instrument Panel
Bolt
- Quantity: 2
- 9 Nm
Outer Instrument Panel Vent
- Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, FRONT PASSENGER SIDE
Bolt
- Quantity: 2
- 3 Nm
Bolt
- Quantity: 7
- 3 Nm
Center Vent
- Refer to CENTER VENT, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 3 Nm
