Speaker Trim, Removing And Installing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Scraper no. 1 and 3 from the Scraper Set:VAS 6845

Fig 1: Identifying Clip release lever no. 4 from the Scraper Set VAS6845
Courtesy of AUDI OF AMERICA, LLC

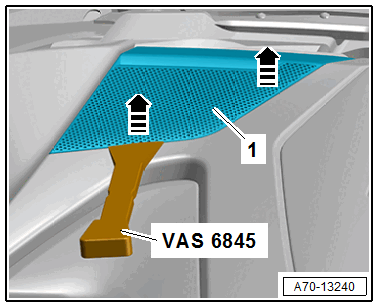

Outer Speaker Trim, Removing

CAUTION:

Risk of damaging the speaker trim due to improper handling.

- Carefully removing and installing the speaker trim.

-- Carefully disengage the speaker trim -1- using scraper from the Scraper Set:VAS 6845 -arrows- by pushing the scraper only approximately 2 mm in the gap under the speaker trim.

Courtesy of AUDI OF AMERICA, LLC

TIP:

If the scraper is inserted farther, it will be located under the mount. It is then not possible to pry out the speaker trim.

-- Disengage the remaining speaker trim retainers and remove toward the rear.

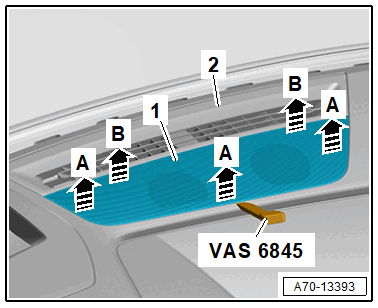

Center Speaker Trim, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Carefully disengage the speaker trim -1- using the scraper from the Scraper Set:VAS 6845 -arrows A- by pushing the scraper only approximately 2 mm into the gap under the speaker trim.

TIP:

If the scraper is inserted farther, it will be located under the defroster vent -2-. It is then not possible to pry out the speaker trim.

-- Disengage the remaining tabs for the speaker trim along the seam.

-- To do this, push the scraper or a long flat-head screwdriver forward under the speaker trim and disengage the front retainers -B arrows-.

Installing

Install in reverse order of removal.
