Front Center Defroster Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center speaker trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
-- Equipped on some models: remove the Near Field Communication Antenna -R269-. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .

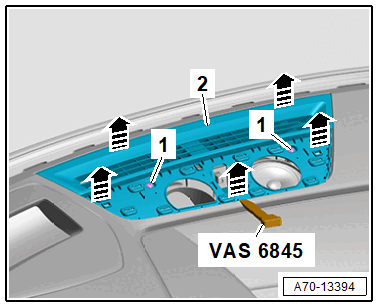

-- Remove the bolts -1-.
-- Pry out the defroster vent -2- using a scraper from the Scraper Set:VAS 6845 -arrows-.
-- Disengage the remaining retainers, slightly lift the defroster vent and remove toward the rear from the instrument panel.
