Overview - Front Door Trim Panel

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

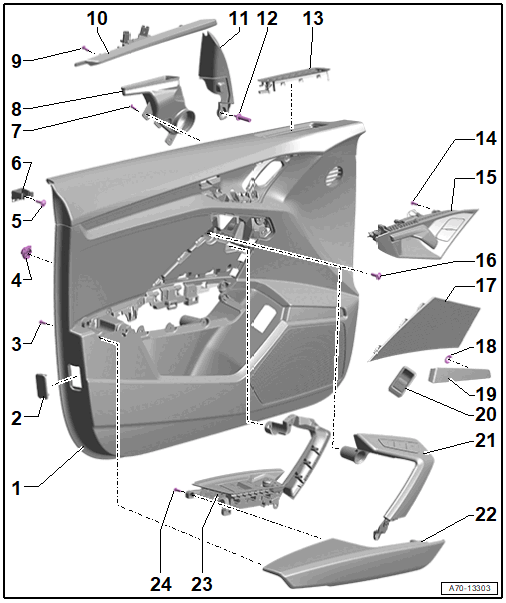

Fig 1: Exploded View Of Front Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Door Trim Panel
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING
Rear Reflector
- Clip into the trim panel
Bolt for Pull Handle/Armrest
- Quantity: 14
- 1.7 Nm
Clip
- Quantity: 8
- Insert in the trim panel
Bolt
- 4 Nm
Door Trim Panel Clamps
Bolt
- Quantity: 2
- 1.7 Nm
Air Duct
- Refer to SIDE WINDOW AIR DUCT/VENT, REMOVING AND INSTALLING
Bolt
- Quantity: 3
- 1.7 Nm
Upper Decorative Trim
- Equipped on some models
- Refer to UPPER DECORATIVE TRIM, REMOVING AND INSTALLING
Window Frame Trim Panel
- Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING
Door Trim Panel Stopper
- 4 Nm
Side Window Vent
- Refer to SIDE WINDOW AIR DUCT/VENT, REMOVING AND INSTALLING
Bolt
- Quantity: 7
- 1.7 Nm
Interior Door Mechanism
- Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING
Bolt for Door Trim Panel
- Quantity: 3
- 2.5 Nm
Treble Speaker Trim
- Refer to TREBLE SPEAKER TRIM, REMOVING AND INSTALLING
Lock Washer
- Quantity: 3
Lower Decorative Trim
- Equipped on some models
- Refer to LOWER DECORATIVE TRIM, REMOVING AND INSTALLING
Switch Trim
- Equipped on some models
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Pull Handle Trim
- Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING
Armrest
- Refer to FRONT ARMREST, REMOVING AND INSTALLING
Pull Handle / Switch Mount
- Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 1.2 Nm
