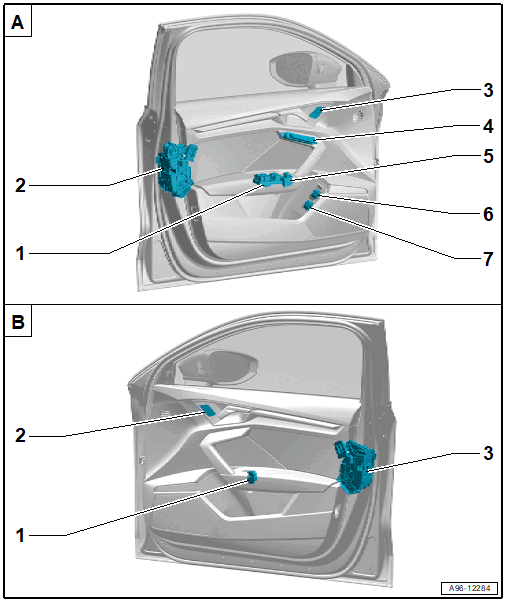

Component Location Overview - Controls In Front Doors

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

Courtesy of AUDI OF AMERICA, LLC

1. A -

   Left Front Door

2. 1 -

   Power Window Control Head in Driver Door -EX36-

   • With the following integrated components
     • Driver Power Window Button -E710-
     • Driver Side Rear Power Window Button In Driver Door -E712-
     • Passenger Side Rear Power Window Button In Driver Door -E714-
     • Front Passenger Power Window Button in Driver Door -E715-
     • Child Safety Lock Button -E318-
     • Left Child Safety Lock Button -E510-
     • Right Child Safety Lock Button -E511-
   • The components cannot be replaced separately. Replace the control head if faulty
   • Removing and Installing. Refer to Power Window Control Head in Driver Door -EX36-, REMOVING AND INSTALLING .
3. 2 -

   Driver Door Contact Switch -F2-

   • Integrated in the door lock. Cannot be replaced separately
   • Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
4. 3 -

   Driver Interior Locking Button -E308-

   • Removing and Installing. Refer to Driver Interior Locking Button -E308- /Front Passenger Interior Locking Button -E309-, REMOVING AND INSTALLING .
5. 4 -

   Driver Seat Memory Settings Control Head -E464-

   • Removing and Installing. Refer to Driver Memory Seat Control Head -E97-, REMOVING AND INSTALLING .
6. 5 -

   Exterior Rearview Mirror Adjuster -EX11-

   • With the following integrated components
     • Mirror Adjusting Switch -E43-
     • Mirror Selector Switch -E48-
   • Removing and Installing. Refer to Exterior Rearview Mirror Adjuster -EX11-, REMOVING AND INSTALLING .
7. 6 -

   Rear Lid Remote Release Button -E233-

   • For vehicles with power rear lid
   • Removing and Installing. Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
8. 6 -

   Fuel Filler Door Release Button -E319-

   • For vehicles without power rear lid
   • Removing and Installing. Refer to Fuel Filler Door Release Button -E319-, REMOVING AND INSTALLING, VEHICLES WITHOUT ELECTRIC REAR LID .
9. 7 -

   Fuel Filler Door Release Button -E319-

   • For vehicles with power rear lid
   • Removing and Installing. Refer to Fuel Filler Door Release Button -E319-, REMOVING AND INSTALLING, VEHICLES WITH ELECTRIC REAR LID .
10. B -

    Right Front Door

11. 1 -

    Front Passenger Door Power Window Switch -EX27-

    • Removing and Installing. Refer to Front Passenger Door Power Window Switch -EX27-, REMOVING AND INSTALLING .
12. 2 -

    Front Passenger Interior Locking Button -E309-

    • Removing and Installing. Refer to Driver Interior Locking Button -E308- /Front Passenger Interior Locking Button -E309-, REMOVING AND INSTALLING .
13. 3 -

    Front Passenger Door Contact Switch -F3-

    • Integrated in the door lock. Cannot be replaced separately
    • Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .

Driver Seat Memory Settings Control HeadE464 / Front Passenger Seat Memory Settings Control HeadE465

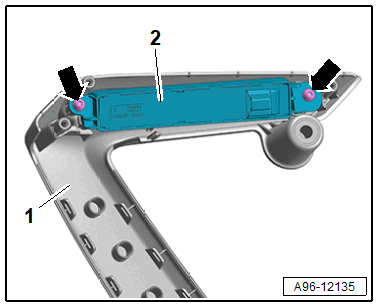

Fig 1: Driver Seat Memory Settings Control Head -E464- / Front Passenger Seat Memory Settings Control Head -E465-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows- to 1.2 Nm.
