Component Location Overview - Trim Panels And Insulation
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

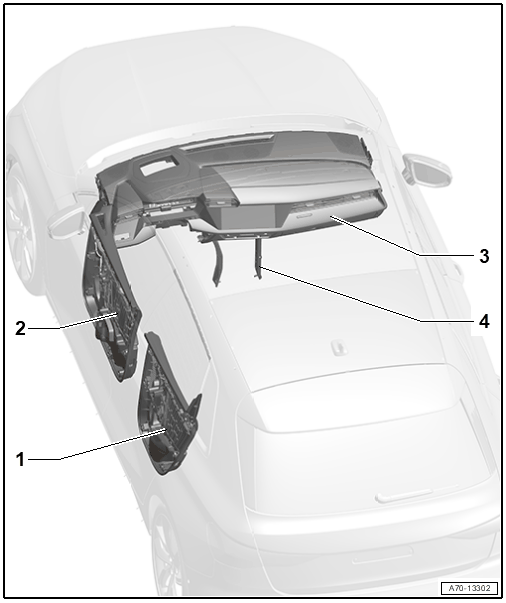

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
The Sportback is shown as an example.
- Rear Door Trim Panel
- Overview. Refer to OVERVIEW - REAR DOOR TRIM PANEL .
- Front Door Trim Panel
- Overview. Refer to OVERVIEW - FRONT DOOR TRIM PANEL .
- Instrument Panel
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL .
- Crossmember
- For the instrument panel
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .
