Overview - Windshield
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Windshield
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
- Center the side distance to the A-pillars
- Distance from the windshield to the upper window frame. Refer to Cover Profile, Mounting on Undamaged Windshield: - .
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .

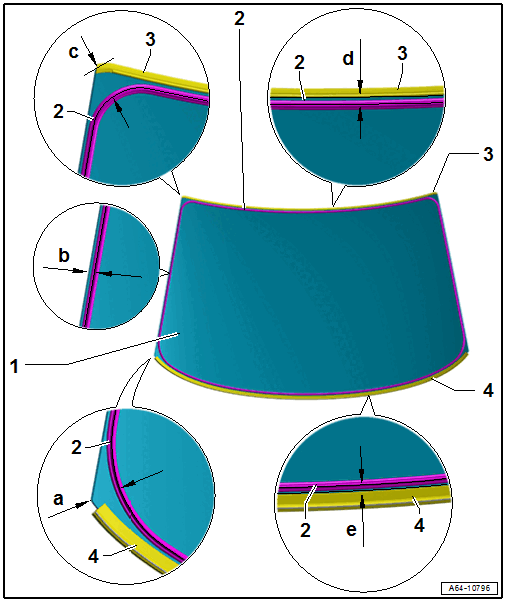

- Different distances to window edge:
- Dimension -a- = 16.5 mm
- Dimension -b- = 10.5 mm
- Dimension -c- = 31.0 mm
- Dimension -d- = 12.5 mm
- Dimension -e- = 8.0 mm
- Adhesive bead thickness. Refer to Adhesive application: .
- Cover Profile
- Replace if reusing an undamaged windshield
- Cover Profile, Mounting on Undamaged Windshield. Refer to Cover Profile, Mounting on Undamaged Windshield: .
- Plenum Chamber Cover Frame
- Windshield component
- With a new windshield, remove the protective molding before installing the cowl panel trim. Refer to Fig 1.
Protective Molding, Removing
-- For a new windshield -3-, the protective molding -1- must first be removed from the frame -2- before assembling the plenum chamber cover.
