Outer Rear/Right/Front/Left Adhesive Beads and Inner Side/Rear Side Adhesive Beads, Cutting

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

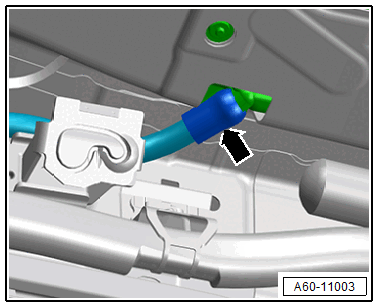

-- Remove the washer fluid hose coupling piece -arrow- from the mount.

-- Protect the cutting area where the rear piercing awl is used on the roof frame using the cutting guard -2- from the Window Removal Set :VAS 861 001A .

Courtesy of AUDI OF AMERICA, LLC

-- To have a better view of the area, pull the seal -3- with the adhesive tape -1- forward in direction of -arrow-.

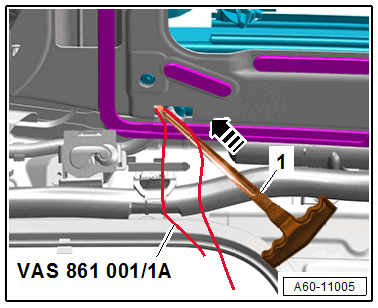

-- Guide the Cutting Cord :VAS 861 001/1A with the piercing awl -1- through the opening in the roof frame and into the gap between the roof frame and sunroof frame in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

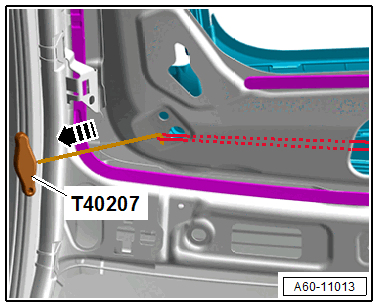

-- Pull through one end of the Cutting Cord :VAS 861 001/1A with the Hook Tool :T40207 outward in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

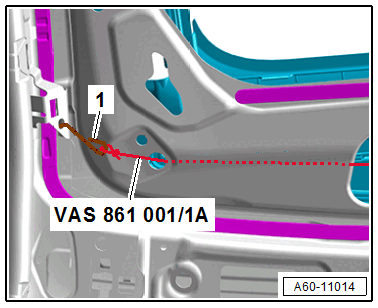

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A on the right side of the roof frame.

Courtesy of AUDI OF AMERICA, LLC

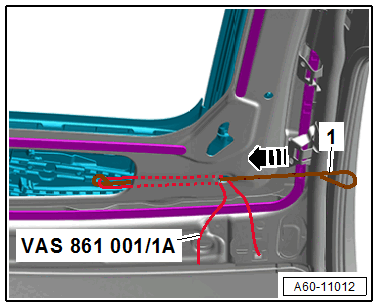

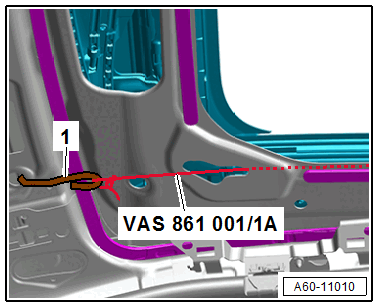

-- Secure the inner end of the Cutting Cord :VAS 861 001/1A to the hook.

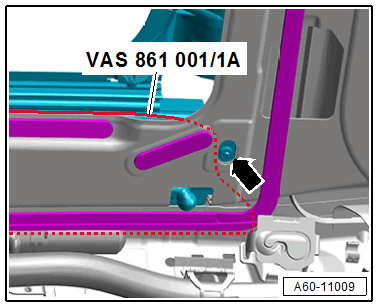

Guide the cutting cord behind the nut -arrow- while doing so.

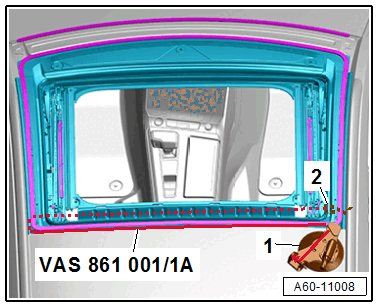

-- Secure the removal device -1- with the reel device on the rear glass panel on the outer right side.

Courtesy of AUDI OF AMERICA, LLC

-- Tension the Cutting Cord :VAS 861 001/1A with the reel device.

-- Cut the rear adhesive bead.

-- Remove the hook -2-.

-- Guide the inner and outer end of the Cutting Cord :VAS 861 001/1A forward.

Courtesy of AUDI OF AMERICA, LLC

Guide the cutting cord in front of the nut -arrow- while doing so.

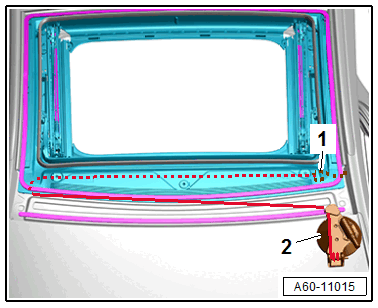

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A on the right front side of the roof frame.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the inner end of the Cutting Cord :VAS 861 001/1A to the hook.

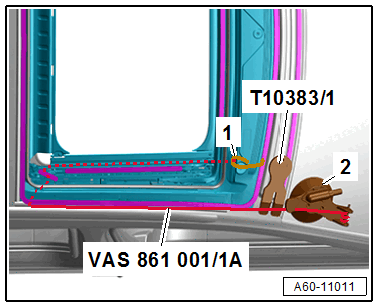

-- Secure the removal device -2- with the reel device on the right outer side of the windshield.

Courtesy of AUDI OF AMERICA, LLC

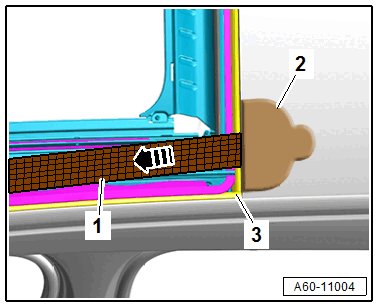

-- To protect the windshield, place the Wedge Set :T10383/1 underneath.

-- Tension the cutting cord with the reel device.

-- Cut through the right adhesive beads.

-- Remove the hook -1-.

-- Insert the tool -1- on the front right side between the roof and the sunroof frame.

Courtesy of AUDI OF AMERICA, LLC

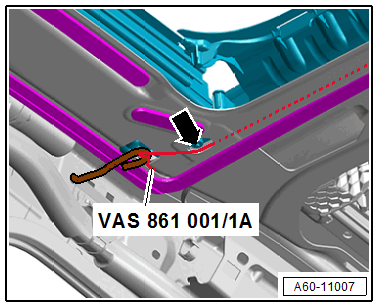

-- Slide the inner end of the Cutting Cord :VAS 861 001/1A to the left using the tool in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of damaging the wires with the cutting cord.

- Guide the cutting cord in front of the wires.

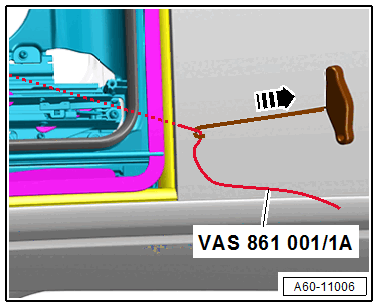

-- Pull the inner end of the Cutting Cord :VAS 861 001/1A through toward the left side of the vehicle and guide it out at the left opening.

-- Engage the hook -1- from the Window Removal Set :VAS 861 001A on the bracket for the left front roof grab handle.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the cutting cord on the hook.

-- Secure the removal device with the reel device -2- on the outer left side of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Tension the cutting cord with the reel device.

-- Cut through the front adhesive bead.

-- Remove the hook -1-.

-- Place the Cutting Cord :VAS 861 001/1A around the left adhesive beads and guide it out toward the front by lifting the sunroof frame slightly on the right side.

Courtesy of AUDI OF AMERICA, LLC

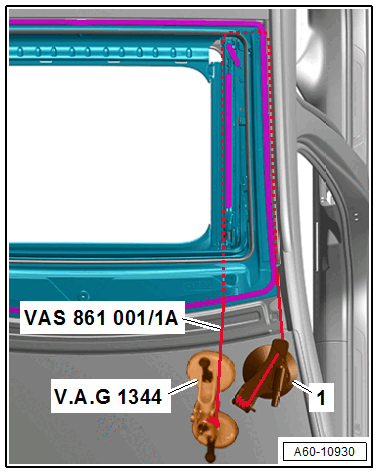

-- Secure the removal tool with the reel device -1- and Double Suction Lifter :V.A.G 1344 on the upper left side of the windshield.

-- Secure the inner end of the cutting cord on the Double Suction Lifter :V.A.G 1344 and secure the outer end on the cutting device.

-- Tension the cutting cord with the reel device.

-- Cut through the right adhesive beads.

-- Remove the sunroof frame.

Installing

-- Prepare sunroof frames that is not damaged for installation (refer to SUNROOF FRAME WITHOUT DAMAGE, PREPARING FOR INSTALLATION ) or prepare the new sunroof frame for installation. Refer to NEW SUNROOF FRAME, PREPARING FOR INSTALLATION .

-- Prepare the body flange for installation. Refer to BODY FLANGE, PREPARING FOR INSTALLATION .

-- Apply the adhesive. Refer to OVERVIEW - ADHESIVE BEADS ON SLIDING SUNROOF FRAME, A6 AVANT .

-- Insert the sunroof frame into the roof opening.

The sealing lip on the cover profile -3- of the windshield -1- must contact the glass trim -2- and must point upward -arrow-. For this, attach the sealing lip with adhesive tape to the windshield or place a used cutting wire behind it.

Courtesy of AUDI OF AMERICA, LLC

-- Align the front sunroof frame.

The sunroof frame must rest centrally between the roof pillars.
Check or correct installation dimensions. Refer to GLASS PANEL, ADJUSTING .
Adhesive for side trim. Refer to REQUIRED TOOLS AND MATERIALS FOR REMOVAL AND INSTALLATION => .

-- Insert the side trim.

The glass trim must rest centrally between the roof pillar and the glass panel.
Check or correct installation dimensions. Refer to GLASS PANEL, ADJUSTING .

Install in reverse order of removal. Note the following:

Observe minimum curing times. Refer to MINIMUM CURING TIME FOR BONDED SLIDING SUNROOF .

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .

-- Install the side trim. Refer to SIDE TRIM, REMOVING AND INSTALLING, A6 AVANT .
