Glove Compartment, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front passenger side instrument panel side cover. Refer to Instrument Panel Side Cover, Removing and Installing .

-- Remove the footwell lamp. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL LAMPS .

-- Open the glove compartment lid.

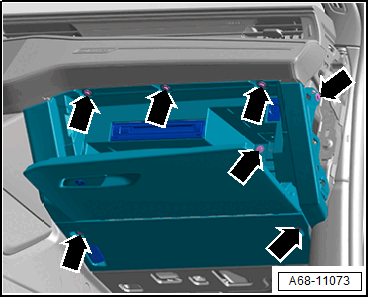

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the glove compartment -1- at the side from the pin -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Slightly remove the glove compartment -1-.

-- Disconnect the connector and remove it.

North American market-specific

-- Remove the glove compartment -1-, until the connector -2- can be disconnected.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Pyrotechnical components can deploy unintentionally.

Risk of injury.

- Discharge the static electricity: quickly touch the door striker.

-- Open the connector lock -A- with a screwdriver -arrow- and disconnect the connector.

Continuation for all vehicles
