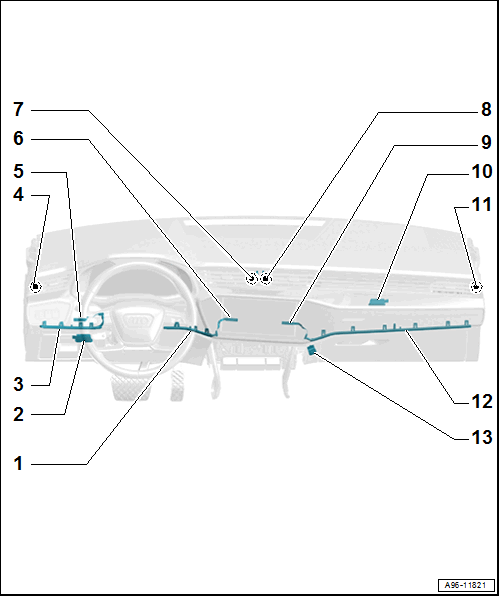

Component Location Overview - Instrument Panel Lamps
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Fiber-Optic Cable
- for Instrument Panel Ambient Lighting Lamp 2 -L293-
- Refer to FIBER-OPTIC CABLE FOR CENTER INSTRUMENT PANEL AMBIENT LIGHTING WITH CENTER INSTRUMENT PANEL AMBIENT LIGHTING LAMP L293, REMOVING AND INSTALLING
- Left Front Footwell Illumination Bulb -L151-
- Fiber-Optic Cable
- for the Instrument Panel Ambient Lighting Lamp 1 -L292-
- Refer to FIBER-OPTIC CABLE FOR LEFT INSTRUMENT PANEL AMBIENT LIGHTING WITH LEFT INSTRUMENT PANEL AMBIENT LIGHTING LAMP L292, REMOVING AND INSTALLING
- Left Instrument Panel Vent Illumination Bulb -L67-
- Cannot be replaced separately
- Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Instrument Panel Ambient Lighting Lamp 1 -L292-
- Instrument Panel Ambient Lighting Lamp 2 -L293-
- Cannot be replaced separately
- Refer to FIBER-OPTIC CABLE FOR CENTER INSTRUMENT PANEL AMBIENT LIGHTING WITH CENTER INSTRUMENT PANEL AMBIENT LIGHTING LAMP L293, REMOVING AND INSTALLING
- Center Instrument Panel Vent Illumination Bulb -L68- Left
- Cannot be replaced separately
- Refer to CENTER VENT, REMOVING AND INSTALLING .
- Center Instrument Panel Vent Illumination Bulb -L68- Right
- Cannot be replaced separately
- Refer to CENTER VENT, REMOVING AND INSTALLING .
- Instrument Panel Ambient Lighting Lamp 3 -L294-
- Cannot be replaced separately
- Refer to FIBER-OPTIC CABLE FOR RIGHT INSTRUMENT PANEL AMBIENT LIGHTING WITH RIGHT INSTRUMENT PANEL AMBIENT LIGHTING LAMP L294, REMOVING AND INSTALLING
- Glove Compartment Lamp -W6-
- Right Instrument Panel Vent Illumination Bulb -L69-
- Cannot be replaced separately
- Refer to CENTER VENT, REMOVING AND INSTALLING .
- Fiber-Optic Cable
- for Instrument Panel Ambient Lighting Lamp 3 -L294-
- Refer to FIBER-OPTIC CABLE FOR RIGHT INSTRUMENT PANEL AMBIENT LIGHTING WITH RIGHT INSTRUMENT PANEL AMBIENT LIGHTING LAMP L294, REMOVING AND INSTALLING
- Right Front Footwell Illumination Bulb -L152-
