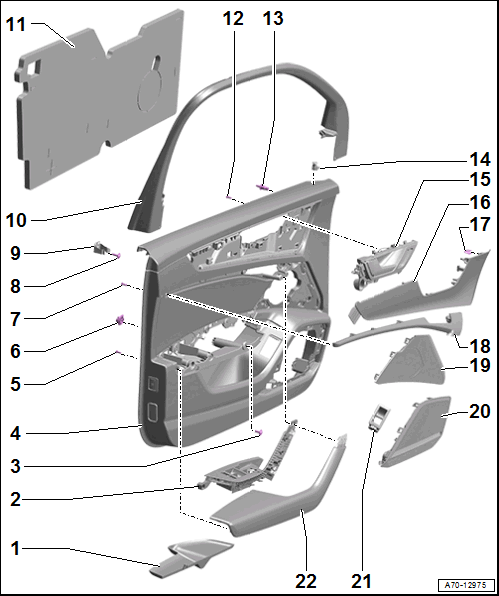

Overview - Front Door Trim Panel
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Door Pocket Trim
- Insert into the door
- Switch Mount
- Refer to Front Pull Handle, Removing and Installing .
- Bolt
- Quantity: 3
- 2.5 Nm
- Door Trim Panel
- Bolt
- Quantity: 13
- 1.2 Nm
- Clip
- Quantity: 8
- Bolt
- Quantity: 5
- 1.2 Nm
- Bolt
- 4.5 Nm
- Door Trim Panel Clamps
- Window Frame Trim Panel
- Insulation Mat
- Bolt
- Quantity: 6
- 1.2 Nm
- Door Trim Panel Stopper
- 4.5 Nm
- Sleeve
- For the Central Locking -SAFE- Indicator Lamp -K133-
- Driver door only
- When replacing the door trim panel, a hole for the sleeve must be made in the new panel by using the old panel as a model
- Interior Door Mechanism
- Decorative Trim
- Refer to Decorative Trim, Removing and Installing .
- Clip
- Quantity: 11
- Pull Handle Trim
- Refer to Front Pull Handle, Removing and Installing .
- Midrange Speaker Trim
- Bass Speaker Trim
- Switch Trim
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
- Pull Handle/Armrest
- Refer to Front Pull Handle, Removing and Installing .
