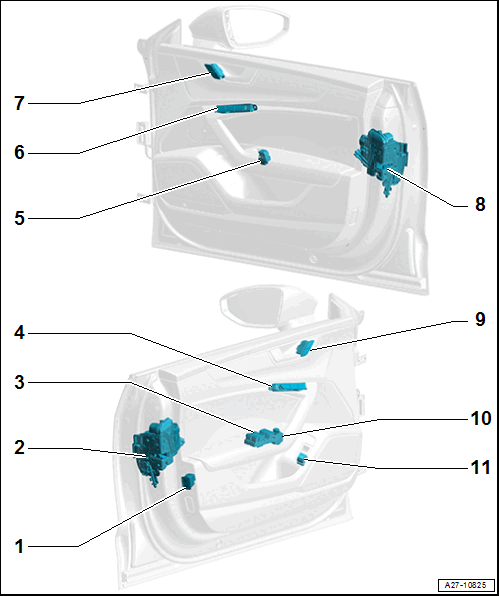

Component Location Overview - Controls In Front Doors

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Refer to INTERIOR MONITORING AND VEHICLE INCLINATION DEACTIVATION BUTTON E616, REMOVING AND INSTALLING .
Driver Door Contact Switch -F2-
- Integrated in the Driver Door Lock Unit -VX21-
- Cannot be replaced separately
- Refer to DOOR LOCK, REMOVING AND INSTALLING .
Power Window Control Head in Driver Door -EX36-
- Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR EX36, REMOVING AND INSTALLING .
Driver Seat Memory Settings Control Head -E464-
- Refer to DRIVER/FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD E464/E465, REMOVING AND INSTALLING .
Front Passenger Door Power Window Switch -EX27-
- Refer to FRONT PASSENGER DOOR POWER WINDOW SWITCH EX27, REMOVING AND INSTALLING .
Front Passenger Seat Memory Settings Control Head -E465-
- Refer to DRIVER/FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD E464/E465, REMOVING AND INSTALLING .
Front Passenger Interior Locking Button -E309-
- Refer to DRIVER AND FRONT PASSENGER INTERIOR LOCKING BUTTON E308/E309, REMOVING AND INSTALLING .
Front Passenger Door Contact Switch -F3-
- Integrated in the Front Passenger Door Lock Unit -VX22-
- Cannot be replaced separately
- Refer to DOOR LOCK, REMOVING AND INSTALLING .
Driver Interior Locking Button -E308-
- Refer to DRIVER AND FRONT PASSENGER INTERIOR LOCKING BUTTON E308/E309, REMOVING AND INSTALLING .
Exterior Rearview Mirror Adjuster -EX11-
- Refer to EXTERIOR REARVIEW MIRROR ADJUSTER EX11, REMOVING AND INSTALLING .
Rear Lid Remote Release Button -E233-
- Refer to REAR LID REMOTE RELEASE BUTTON E233, REMOVING AND INSTALLING .
