Component Location Overview - Transmission Control, AUDI A6 And A7

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Differential Lock Control ModuleJ187, Vehicles with Final Drive 0D3 quattro sport or 0BX quattro sport

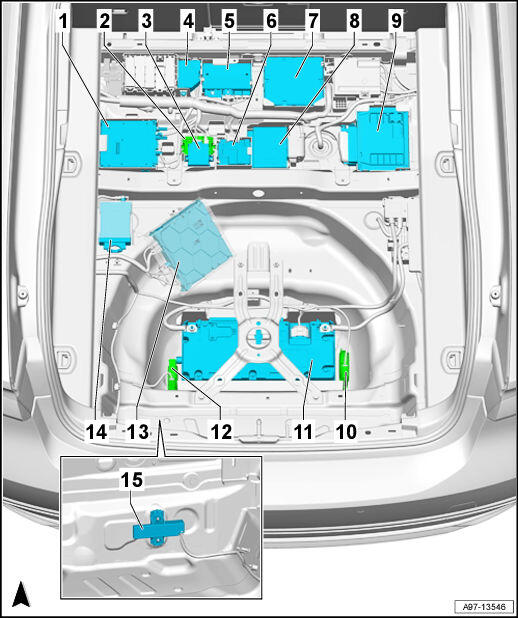

Fig 1: Differential Lock Control Module -J187-, Vehicles with Final Drive 0D3 "quattro sport" or 0BX "quattro sport"

Courtesy of AUDI OF AMERICA, LLC

Component location: the Differential Lock Control Module -J187- -9- is in the luggage compartment on the right side.

All-Wheel Drive Control ModuleJ492, vehicles with final drive 0B0 quattro ultra or 09R quattro ultra

Fig 2: All-Wheel Drive Control Module -J492-, Vehicles with Final Drive 0B0 "quattro ultra"

Courtesy of AUDI OF AMERICA, LLC

Component location: the All-Wheel Drive Control Module -J492- -1- is located on the transmission on the all-wheel drive clutch.

All-Wheel Drive Control Module -J492-, Removing and Installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .
