Fiber-Optic Cable With Door Ambient Lighting Lamp And Bulb W88/W89/L201/L202, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Disengage and remove the insulation.

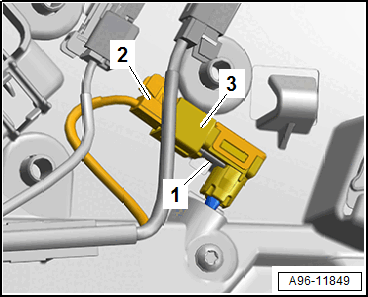

-- Disconnect the connector -2-.
-- Remove the lamp -3- from the mount -1-.
-- Release the retainers -arrows-.
-- Remove the cap -6-.
-- Remove the circuit board -1-.
-- Release the catches -3- and -5-.
-- Remove the housing -2- from the fiber-optic cable -4-.
-- Remove the rear pull handle trim. Refer to OVERVIEW - REAR DOOR TRIM PANEL .

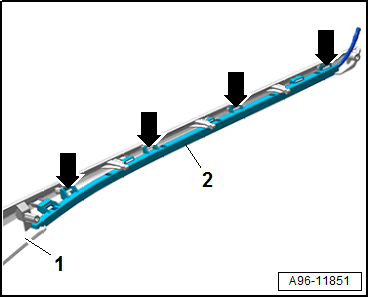

-- Release the retainers -arrows-.
-- Remove the fiber-optic cable -2- from the pull handle trim -1-.
