Overview - Rear Door Trim Panel

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

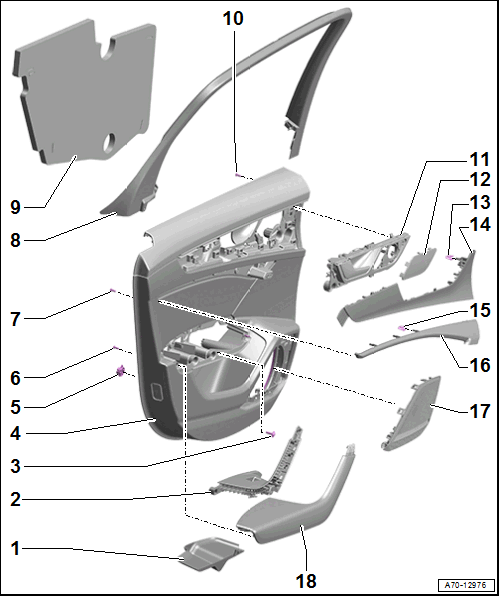

Fig 1: Exploded View Of Rear Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Door Pocket Trim
Switch Mount
- Refer to Rear Pull Handle, Removing and Installing .
Bolt
- Quantity: 3
- 2.5 Nm
Door Trim Panel
- Refer to Rear Door Trim Panel, Removing and Installing .
Clip
Bolt
- 1.2 Nm
Bolt
- Quantity: 4
- 1.2 Nm
Window Frame Trim Panel
- Installed depending on vehicle equipment
- Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .
Insulation Mat
Bolt
- 1.2 Nm
Interior Door Mechanism
- Refer to Interior Door Mechanism, Removing and Installing .
Treble Speaker Trim
- Refer to Speaker Trim in Door Trim Panels, Removing and Installing .
Clip
Decorative Trim
- Refer to Decorative Trim, Removing and Installing .
Clip
Pull Handle Trim
- Refer to Rear Pull Handle, Removing and Installing .
Bass Speaker Trim
- Refer to Speaker Trim in Door Trim Panels, Removing and Installing .
Pull Handle/Armrest
- Refer to Rear Pull Handle, Removing and Installing .
