Height Adjustment at Hinge:
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

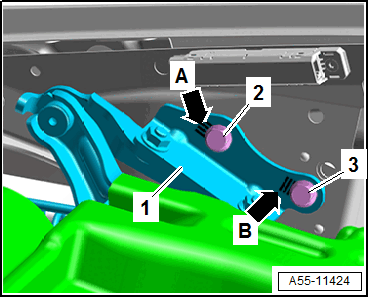

-- Loosen bolts -2 and 3-.
-- Adjust the height of the rear lid at the hinge -1-.
- Use the mark -arrow A- on the bracket for the height adjustment.
- The mark -arrow B- on the bracket must not change.
-- Tighten the bolts.
Tightening Specifications
- Refer to OVERVIEW - REAR LID, A6 SEDAN
