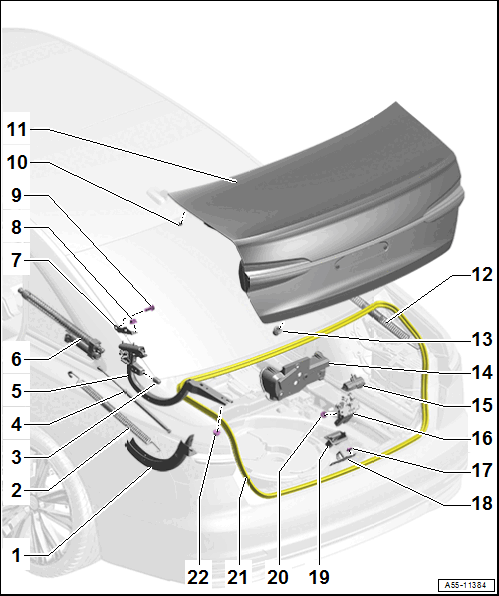

Overview - Rear Lid, A6 Sedan
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Overview - Rear Lid Lock Emergency Release Cable. Refer to OVERVIEW - REAR LID LOCK EMERGENCY RELEASE CABLE .
|
|
- Rear Lid Hinge Trim Panel
- Removing and Installing. Refer to OVERVIEW - REAR LID TRIM PANEL .
- Tension Spring
- Left
- Only for manual rear lid release
- Removing and Installing. Refer to TENSION SPRING, REMOVING AND INSTALLING .
- Stop Buffer
- For the rear lid hinge
- Gas-Filled Strut
- Only for manual rear lid release
- Only on the left side of the vehicle
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING, A6 SEDAN .
- Rear Lid Motor
- Only for power rear lid release
- Only on the left side of the vehicle
- Overview. Refer to OVERVIEW - ELECTRIC REAR LID RELEASE, A6 SEDAN .
- Bracket
- For the hinge
- Nut
- Quantity: 2
- 21 Nm
- Bolt
- Quantity: 2
- 21 Nm
- Buffer
- Rear Lid
- Removing and Installing. Refer to REAR LID, REMOVING AND INSTALLING, A6 SEDAN .
- Adjusting. Refer to REAR LID, ADJUSTING .
- Tension Spring
- Right
- Only for manual rear lid release
- Removing and Installing. Refer to TENSION SPRING, REMOVING AND INSTALLING .
- Adjusting Buffer
- Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING, A6 SEDAN .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Anti-Theft Protection
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Latch
- with
- Rear Lid Lock Unit -VX25-, Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-
- Equipped on some models: Rear Lid Contact Switch -F111-
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- with
- Nut
- Quantity: 2
- 8 Nm
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER .
- Rear Lid Latch Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 21 Nm
- Rear Lid Seal
- Removing and Installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING, A6 SEDAN .
- Nut
- Quantity: 2
- 21 Nm
