Overview - Electric Rear Lid Release, A6 Sedan
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

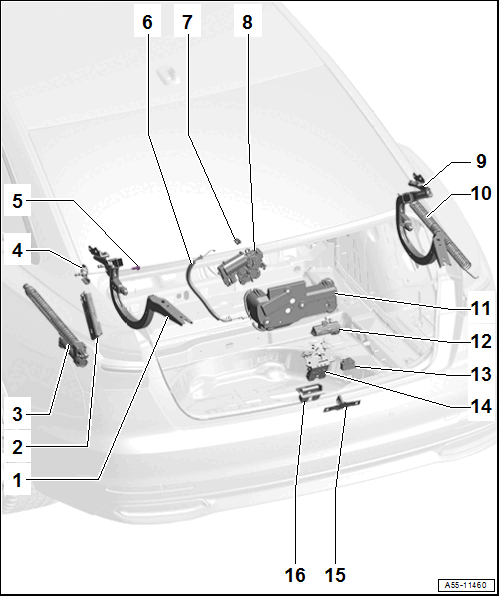

- Hinge
- Left
- Overview. Refer to OVERVIEW - REAR LID, A6 SEDAN .
- Rear Lid Control Module -J605-
- Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Rear Lid Motor 1 -V444-
- Removing and Installing. Refer to Rear Lid Motor 1 -V444-, REMOVING AND INSTALLING, A6 SEDAN .
- Programming. Refer to REAR LID DRIVE UNITS -V444- / - V445- / -VX69- / -VX77-, ADAPTING .
- Bracket
- For the rear lid motor
- Fitting Bolt
- 21 Nm
- Quantity: 2
- Closing Assist Release Cable
- Removing and Installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
- Locking Element
- For the closing assist
- Rear Lid Closing Assist Motor -V382-
- Removing and Installing. Refer to Rear Lid Closing Assist Motor -V382-, REMOVING AND INSTALLING, A6 SEDAN .
- Hinge
- Right
- Overview. Refer to OVERVIEW - REAR LID, A6 SEDAN .
- Tension Spring
- Right
- Removing and Installing. Refer to TENSION SPRING, REMOVING AND INSTALLING .
- Anti-Theft Protection
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Rear Lid Control Head -EX58-
- With Rear Lid Lock Button in Luggage Compartment -E406-, Locking Mechanism Button in the Rear Lid -E806-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT .
- Latch
- Overview. Refer to OVERVIEW - REAR LID, A6 SEDAN .
- Striker
- Overview. Refer to OVERVIEW - REAR LID, A6 SEDAN .
- Rear Lid Latch Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
