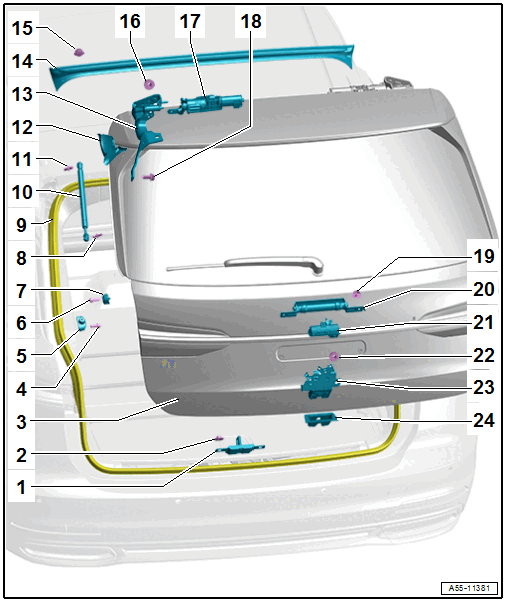

Overview - Rear Lid, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER .
- Nut
- Quantity: 2
- 21 Nm
- Rear Lid
- Removing and Installing. Refer to REAR LID, REMOVING AND INSTALLING, A6 AVANT .
- Adjusting. Refer to REAR LID, ADJUSTING .
- Bolt
- Quantity: 2
- 8 Nm
- Adjusting Buffer
- Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING, A6 AVANT AND A7 SPORTBACK .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Bolt
- 8 Nm
- Stop
- For the adjusting buffer
- Removing and Installing. Refer to ADJUSTING BUFFER STOP, REMOVING AND INSTALLING .
- Ball Pin
- 21 Nm
- Rear Lid Seal
- Removing and Installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING, A6 AVANT AND A7 SPORTBACK .
- Gas-Filled Strut
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
- Ball Pin
- 21 Nm
- Rear Lid Hinge Trim Panel
- Removing and Installing. Refer to the appropriate service information .
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING, A6 AVANT .
- Roof Frame Trim Panel
- Removing and Installing. Refer to ROOF FRAME TRIM PANEL, REMOVING AND INSTALLING, A6 AVANT .
- Clip
- With foam seal
- Always replace after removing
- Quantity: 8
- Nut
- Quantity: 2
- 30 Nm
- Rear Lid Motor
- Overview. Refer to OVERVIEW - ELECTRIC REAR LID RELEASE, A6 AVANT .
- Bolt
- Quantity: 2
- 30 Nm
- Nut
- Quantity: 2
- 8 Nm
- Balance Weight
- Equipped on some models
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to the appropriate service information
- Nut
- Quantity: 2
- 21 Nm
- Latch
- with
- Rear Lid Lock Unit -VX25-, Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-
- Equipped on some models: Rear Lid Contact Switch -F111-
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- with
- Rear Lid Latch Trim Panel
- Removing and Installing. Refer to the appropriate service information .
