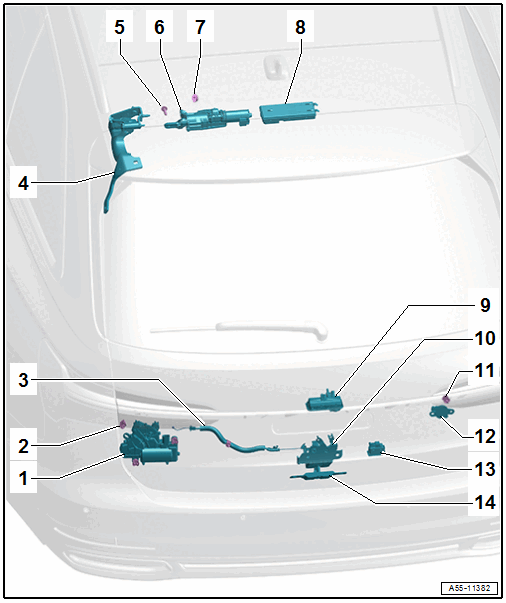

Overview - Electric Rear Lid Release, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Lid Closing Assist Motor -V382-
- Removing and Installing. Refer to Rear Lid Closing Assist Motor -V382-, REMOVING AND INSTALLING .
- Locking Element
- For the closing assist
- Closing Assist Release Cable
- Removing and Installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING, A6 AVANT .
- Bolt
- 20 Nm
- Always replace after removing
- Rear Lid Motor
- On the left: Rear Lid Motor 1 -V444- ; on the right: Rear Lid Motor 2 -V445-
- Removing and Installing. Refer to REAR LID MOTOR 1 AND 2 -V444- / -V445-, REMOVING AND INSTALLING, A6 AVANT .
- Programming. Refer to REAR LID DRIVE UNITS -V444- / - V445- / -VX69- / -VX77-, ADAPTING .
- Nut
- 30 Nm
- Always replace after removing
- Rear Lid Control Module -J605-
- Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING, A6 AVANT .
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to the appropriate service information
- Latch
- Overview. Refer to OVERVIEW - REAR LID, A6 AVANT .
- Expanding Rivet
- Quantity: 2
- Rear Lid Warning Buzzer -H32-
- Removing and Installing. Refer to the appropriate service information .
- Rear Lid Control Head -EX58-
- With Rear Lid Lock Button in Luggage Compartment -E406-, Locking Mechanism Button in the Rear Lid -E806-
- Removing and installing. Refer to the appropriate service information .
- Striker
- Overview. Refer to OVERVIEW - REAR LID, A6 AVANT .
