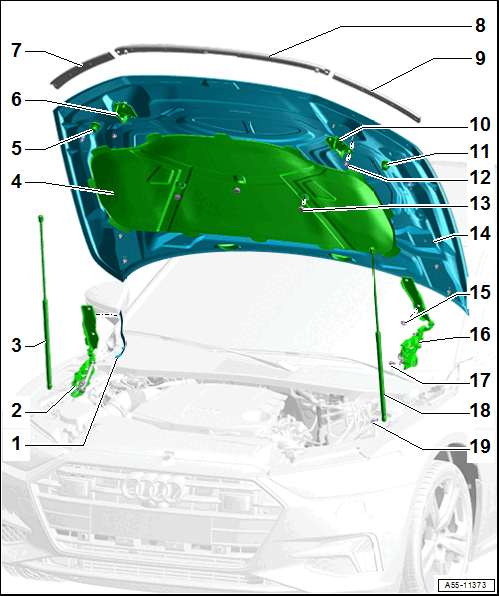

Overview - Hood

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Hinge Cover
Hinge
- Right
- Equipment versions with pedestrian protection
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Pedestrian Protection Trigger, Removing and Installing. Refer to OVERVIEW - PEDESTRIAN PROTECTION
Gas-Filled Strut
- Right
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
Insulation
Adjusting Buffer
- Right
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
Striker
- Right
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE AND HEIGHT ADJUSTMENT AT STRIKER .
Impact Guard
- Right
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING, SIDE .
Impact Guard
- Center
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING, CENTER .
Impact Guard
- Left
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING, SIDE .
Striker
- Left
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE AND HEIGHT ADJUSTMENT AT STRIKER .
Adjusting Buffer
- Left
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
Nut
- 9 Nm
  - A6: quantity: 3
  - A7 Sportback: quantity: 2
Clip
- For the insulation
- Must audibly engage
Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Removed pedestrian protection: reset the hinge. Refer to HINGE, RESETTING
- Adjusting. Refer to HOOD, ADJUSTING .
Nut
- 21 Nm
- Quantity: 2
Hinge
- Left
- Equipment versions with pedestrian protection
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Pedestrian Protection Trigger, Removing and Installing. Refer to OVERVIEW - PEDESTRIAN PROTECTION
Bolt
- 21 Nm
- Quantity: 2
Gas-Filled Strut
- Left
- Removing and installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
Ball Pin
- 14 Nm
- For the gas-filled strut
