Charge Air Pressure Sensor 2 -G447-, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the upper air duct pipe and pivot to the left side. Refer to UPPER AIR DUCT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .

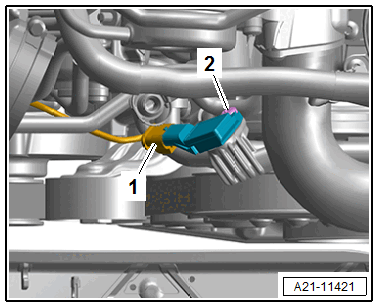

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and the Charge Air Pressure Sensor -G31-.

Install in the reverse order of removal while noting the following:

Replace the O-ring after removal.

-- Install the upper air duct pipe. Refer to UPPER AIR DUCT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .

Tightening Specifications

Refer to OVERVIEW - CHARGE AIR SYSTEM, 2.9L ENGINE, BODY SIDE
