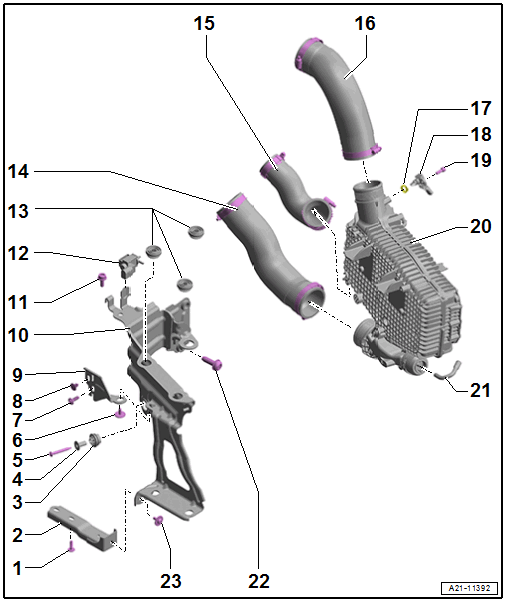

Overview - Charge Air System, 2.9L Engine, Body Side
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 8 Nm
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Bracket
- Grommet
- Spacer Sleeve
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Clip
- Bracket
- Bracket
- For the charge air cooler
- Bolt
- 21 Nm
- Electrical Compressor Bypass Door Valve -N731-
- Grommets
- Air Duct Hose
- Air Duct Hose
- Air Duct Hose
- O-Ring
- Not available separately; replace if leaking -item 18- OVERVIEW - CHARGE AIR SYSTEM, 2.9L ENGINE, BODY SIDE => List Item:Charge Air Pressure Sensor -G31-
- Charge Air Pressure Sensor -G31-
- Removing and Installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING, 2.9L ENGINE .
- Vacuum Hose
- Bolt
- 9 Nm
- Replace after removing
- Bolt
- 8 Nm
