Component Location Overview - Air Ionization

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows a LHD vehicle as an example. The component layout is a mirror image for RHD vehicles.

Courtesy of AUDI OF AMERICA, LLC

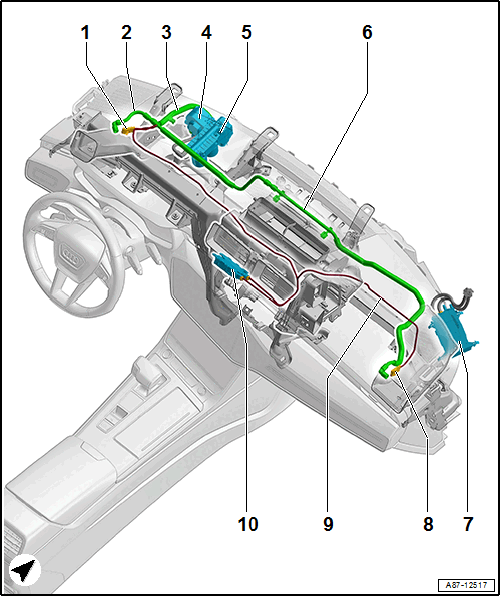

Driver Side Ionizer -J1105-
- Removing and Installing. Refer to Driver Side Ionizer - J1105-, REMOVING AND INSTALLING .
Hose to Left Air Duct
- Removing and Installing. Refer to FRAGRANCE SYSTEM HOSES, REMOVING AND INSTALLING .
Hose to Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686- :
- Removing and Installing. Refer to FRAGRANCE SYSTEM HOSES, REMOVING AND INSTALLING .
Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686-
- Overview. Refer to OVERVIEW - FRAGRANCE SYSTEM .
- Removing and Installing. Refer to Air Freshening System Control Module -J1101- WITH Fragrance Diffuser System Blower -V686-, REMOVING AND INSTALLING .
Fragrance System Functional Unit -GX43-
- Overview. Refer to OVERVIEW - FRAGRANCE SYSTEM .
- Removing and Installing. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .
- Contains the following components:
  - Fragrance Diffuser System Actuator -V687-
  - Fragrance Diffuser System Temperature Sensor -G1056-
  - Container with Fragrance 1 --
  - Container with Fragrance 2 --
Hose to Left Air Duct
- Removing and Installing. Refer to FRAGRANCE SYSTEM HOSES, REMOVING AND INSTALLING .
A/C System Particulate Matter Concentration Sensor -G930-
- Removing and Installing. Refer to A/C System Particulate Matter Concentration Sensor -G930-, REMOVING AND INSTALLING .
- Installed depending on vehicle equipment
Front Passenger Side Ionizer -J1106-
- Removing and Installing. Refer to Front Passenger Side Ionizer -J1106-, REMOVING AND INSTALLING .
Wiring Harness
- From the Ionizer Control Module -J897- to Driver Side Ionizer -J1105- and Front Passenger Side Ionizer -J1106-
Ionizer Control Module -J897-
- Removing and Installing. Refer to Ionizer Control Module -J897-, REMOVING AND INSTALLING .
