Overview - Fragrance System
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

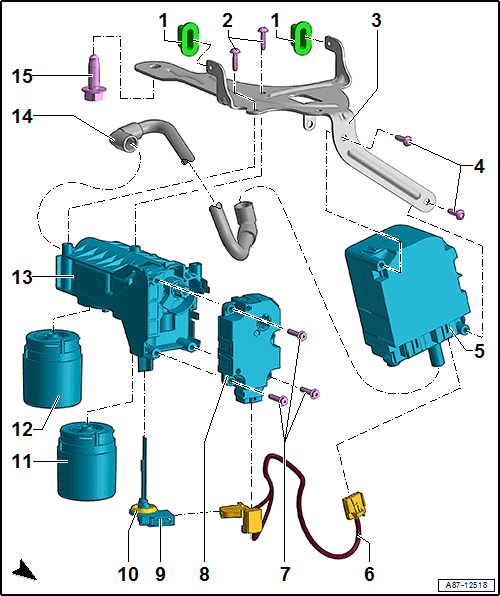

- Plug
- Quantity: 2
- In instrument panel crossmember
- Bolt
- 1.5 Nm
- Quantity: 2
- Bracket
- Right-hand drive is arranged in a mirror image
- Bolt
- 1.5 Nm
- Quantity: 2
- Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686-
- They are one component and cannot be separated
- Removing and Installing. Refer to Air Freshening System Control Module -J1101- WITH Fragrance Diffuser System Blower -V686-, REMOVING AND INSTALLING .
- Wiring Harness
- Bolt
- 1.1 Nm
- Quantity: 3
- Fragrance Diffuser System Actuator -V687-
- Removing and Installing. Refer to Fragrance Diffuser System Actuator -V687-, REMOVING AND INSTALLING .
- Fragrance Diffuser System Temperature Sensor -G1056-
- Removing and Installing. Refer to Fragrance Diffuser System Temperature Sensor -G1056-, REMOVING AND INSTALLING .
- Seal
- Check before installing the Fragrance Diffuser System Temperature Sensor -G1056-
- Container with Fragrance 1 --
- Removing and Installing:
- A6. Refer to the appropriate service information .
- There are different versions. Refer to the Parts Information.
- Removing and Installing:
- Container with Fragrance 2 --
- Removing and Installing:
- A6. Refer to the appropriate service information .
- There are different versions. Refer to the Parts Information.
- Removing and Installing:
- Fragrance System Functional Unit -GX43-
- Removing and Installing. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .
- Hose
- Bolt
- 20 Nm
